8000 & 8000XXL Bug Screen Doors
Jump to: Information | Photos | Customers | Models | Compare Models | Customizations | Warranty
Bug Screen Door – The Complete Contaminant Restriction Solution

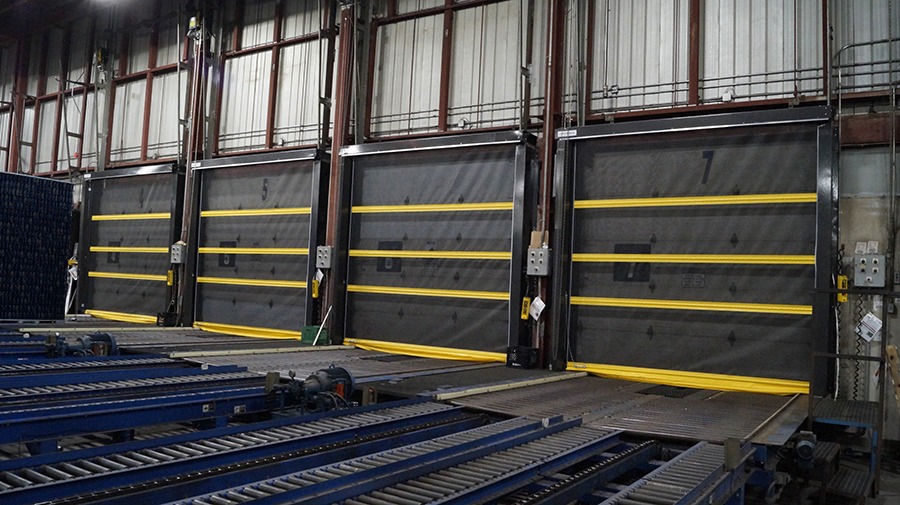

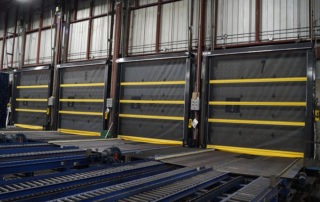

Birds, pests and insects are no longer able to enter through the oversized opening at a local food manufacturing facility in Ontario after installing a bug screen door, along with an air curtain and heavy industry rubber door.
| Great for food facilities that need to adhere to strict government safety regulations. |
✓ Contamination prevention: Deter birds, pests and all sorts of bugs from entering the facility for increased personnel and product safety.
✓ Durability: Constructed using 14-gauge steel framing with weatherproof, durable netting material that is abrasion and rot-resistant.
Information
Prevent Birds, Insects and Rodents with a Bug Screen Door
These bug prevention doors use a weatherproof screened barrier to stop contaminants such as birds, bugs and rodents from entering a facility. Also a bug screen door is an easy way to let in fresh air during summer for ventilation and comfort.
Durable and Weatherproof Bug Prevention Screens
The high-quality vinyl-coated polyester screening of these bug screen doors allows for unrestricted airflow and natural light. Additionally, their high tear and tensile strength screens are weatherproof, abrasion and rot-resistant, as well as a flame retardant. Furthermore, the screen on the 8000XXL bug prevention door is UV-resistant.
Dependable Frames and Operators
Door frames are constructed from 14-gauge steel with a chain-weighted bottom bar, with steel frame nylon brush gaskets providing an additional optimal seal. These counterweight-balanced doors are operated manually by means of a handle and pull chain. Wind load stabilizers and safeguard rollers prevent blowout, and custom fabric options are available upon request.
Photos
Models
 |

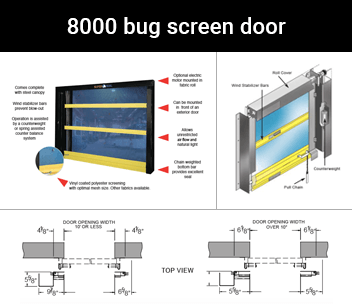

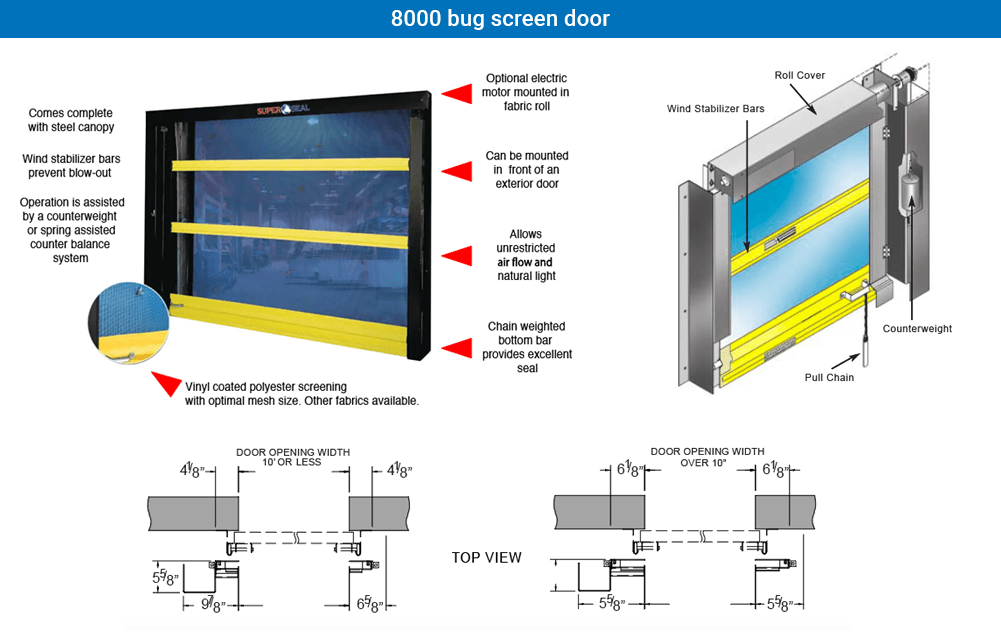

8000 Bug Screen DoorThe 8000 bug screen door utilizes a 14-gauge steel guide and side frame and incorporates a bottom latching mechanism. Internal wind stabilizer bars and canopy are also standard on this model that fits door sizes up to 12'x12'. |
 |

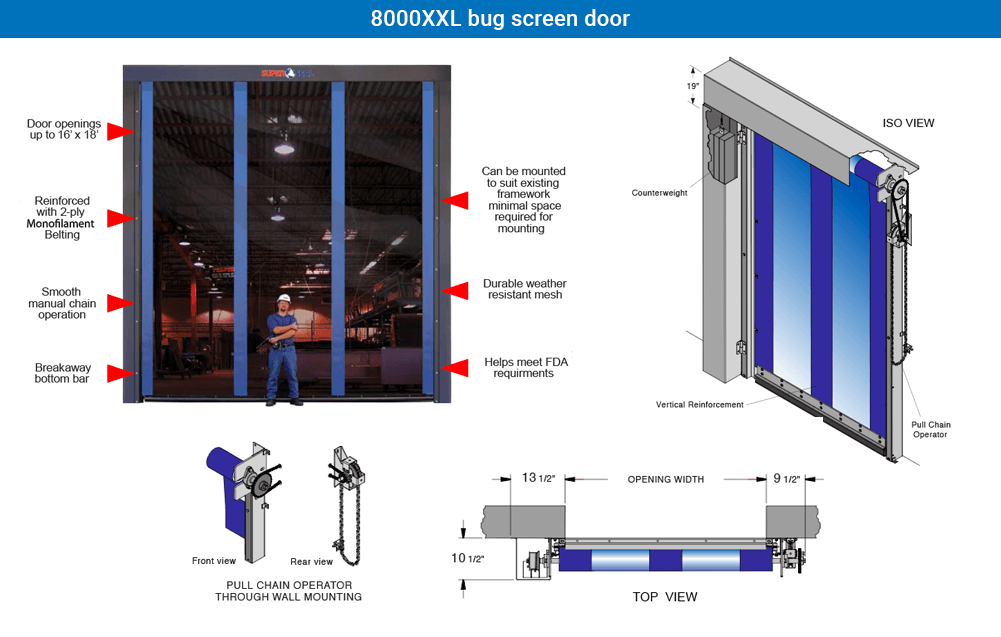

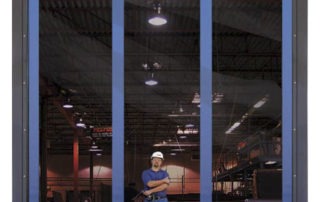

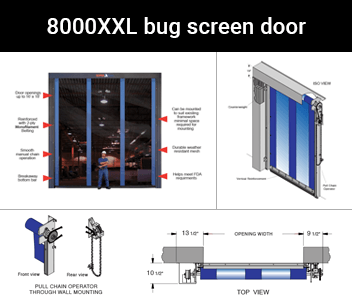

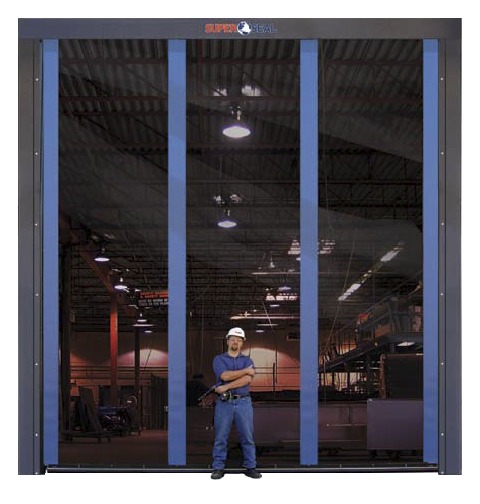

8000XXL Bug Screen DoorThis bug prevention door consists of 14-gauge steel uprights, counterweights/a counterbalance system and includes a canopy for the fabric roll, fitting on larger door sizes of up to 16'x18'. |
Model Comparison Chart
| 8000 | 8000XXL | |
| Size range | Up to 12'x12' | Up to 16'x18' |
| Construction | 14-gauge steel guide/side frame | 14-guage steel uprights, counterweights/a counterbalance system |
| Fabric roll canopy | ||
| Screen material | ||
| Screen protection | Weatherproof, abrasion-resistant and rot-resistant | Weatherproof, abrasion-resistant, rot-resistant and UV-resistant |
| Reinforced belting strip placement | Horizontal | Vertical |
Customizations
8000
• Projection frame.• Between jambs mounting.
• Galvanized steel frame.
• 1" keyed shaft.
• Custom fabric.
8000XXL
• Projection frame.• Solid fabric (with window).
• Galvanized plated steel frame.
• Custom fabric.
Warranty
• 1 year limited.
