Blue Giant StrongArm SVR303 Powder-Coat Hydraulic Barrier Trailer Restraint

Manufactured in Canada

Trailer Restraints

Blue Giant Authorized Dealer


Prevent Trailer Creep and Increase Safety

Prevent serious workplace injury/accidents with a trailer restraint. Ensure the safety of your workers and prevent the truck from moving forward during loading.

The strongest hold: Our trailer restraints are capable of holding the heaviest trucks. With the SVR303 having restraining forces of 35,000 lbs.

Stops trailer theft: Many of our trailer restraints can be left engaged overnight to deter trailer theft.

One size fits all: Able to lock a variety of trucks with a vertical operating range from 8″ to 26″.

Flexible: Compensation float automatically adjusts to track movement during loading.

Durable: All components are zinc plated for superior durability and weatherproofing. While the housing is coated in a rust and corrosion resistant powder coat.

Information

Blue Giant StrongArm Trailer and Vehicle Restraints

Electric
(HVR303)

Blue Giant StrongArm HVR303 Powder-Coat Electric Hook Trailer Restraint

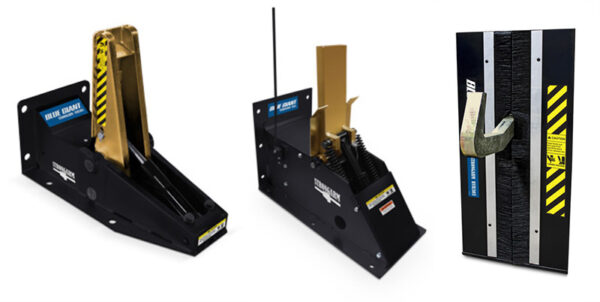

Hydraulic
(SVR303, TL85 and RVR303)

Blue Giant StrongArm Powder-Coat Hydraulic Trailer Restraint

Mechanical
(ML10)

Blue Giant StrongArm ML10 Powder-Coat Mechanical Barrier Trailer Restraint
Rust Proof Powder Coat

Built to Last

PowderCoat finish steel housing is designed for long-term performance and protects internal components from collision damage, corrosion, rusting and abrasions.

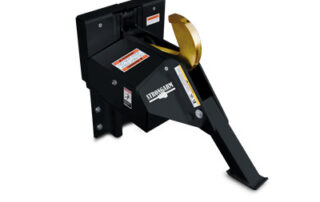

Blue Giant StrongArm HVR303 Powder-Coat Electric Hook Trailer Restraint

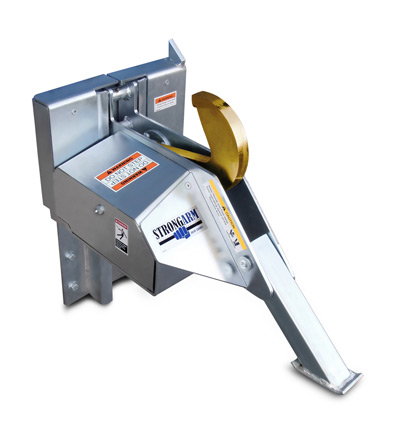

StrongArm HVR303 Electric Trailer Restraint

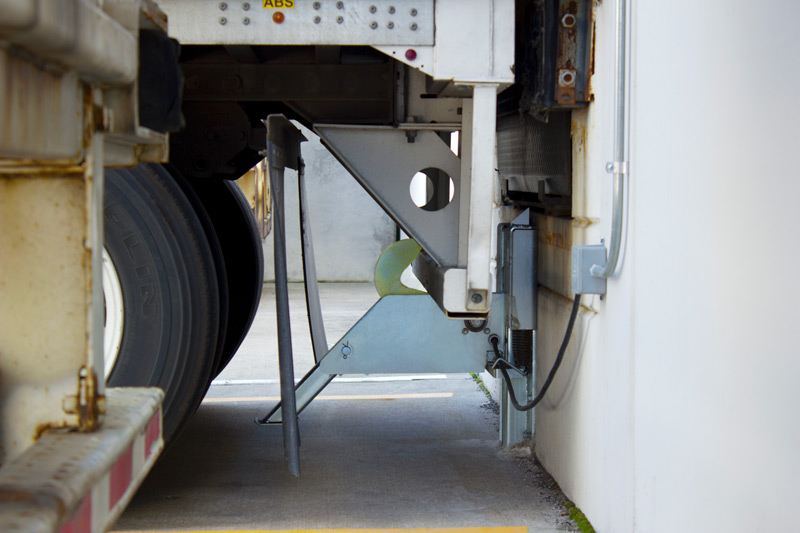

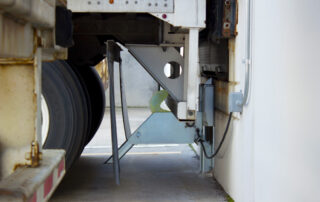

The wall-mounted Blue Giant StrongArm HVR303 electric vehicle restraint secures a trailer to the loading dock via an electro-mechanical hook design.

Easy to install and eco-friendly, the HVR303 combines advanced engineering, positive holding ability, and sophisticated touch controls to make your loading dock safer than ever before.

Instant Compensation Float

With a vertical restraining range of 9″ to 25″ and instant float of 16″, the HVR303 services a wide variety of trailers, including those with bent or damaged ICC bars. Ability to adjust automatically to trailer motion makes it compatible with air-ride suspension systems, enabling solid engagement and minimizing the risk of separation and worker injury.

Blue Giant StrongArm HVR303 Electric Hook Trailer Restraint IP67 Submersible Motor

Submersible for Extreme Weather

The IP67-rated motor is submersible up to 3.3′ (1m) to prevent it from getting damaged in extreme weather conditions.

Strength You Can Depend On

With a restraining force of 32,000 lb (14,545 kg), the StrongArm™ HVR303 helps prevent the dangers associated with unexpected horizontal or vertical trailer movement. The secure gripping and holding capability enables a smooth and fortified bridge between the loading dock and the trailer, keeping cargo, equipment, and forklift operators safer during loading and unloading. It’s designed to comply with ANSI MH30.3.

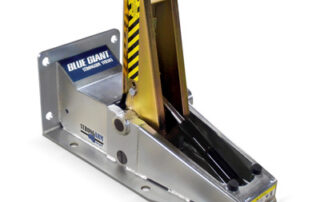

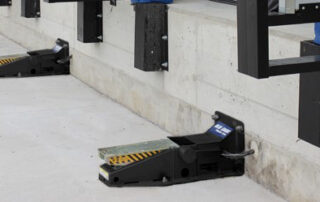

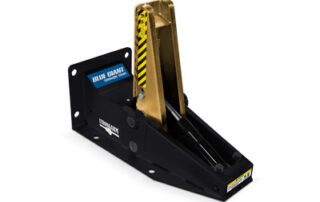

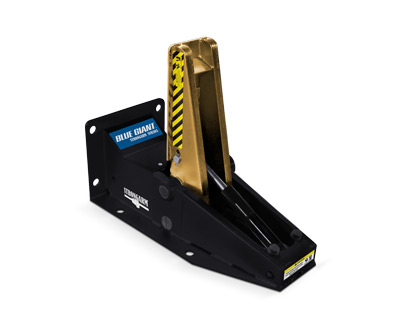

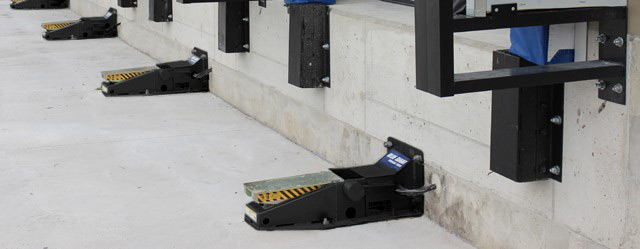

Blue Giant StrongArm SVR303 Powder-Coat Hydraulic Barrier Trailer Restraint

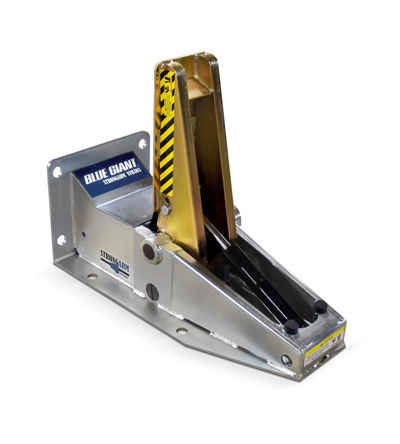

StrongArm SVR303 Hydraulic Trailer Restraint

ANSI MH30.3 tested and approved, the StrongArm SVR303 is a low-profile, non-impact design with a rotating arm that seeks a trailer’s ICC bar via a patented, switchless technology.

Once engaged, it uses 35,000 lb of restraining force to secure the truck to the dock. Dual-acting hydraulic cylinders prevent lock-up and release problems.

Submersible for Extreme Weather

NEMA6 IPS sensor and double-acting hydraulic cylinders keep the unit operating safely and efficiently during wet or flooded conditions.

While the restraint arm dislodges or breaks apart obstacles that prevent it from properly parking. Furthermore, the restraint arm can be left engaged overnight, deterring trailer theft.

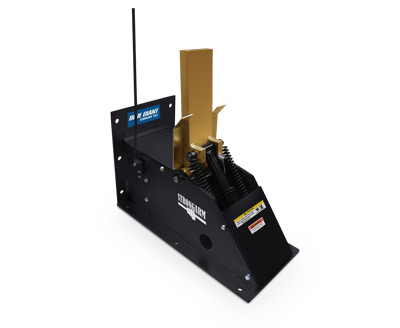

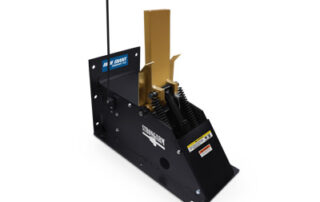

Blue Giant StrongArm TL85 Powder-Coat Hydraulic Barrier Trailer Restraint

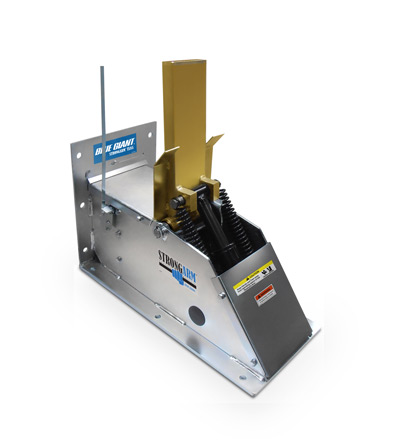

StrongArm TL85 Hydraulic Vehicle Restraint

The Blue Giant StrongArm TL85 hydraulic vehicle restraint keeps dock operations safe and secure during loading and unloading.

Trucks and trailers are held firmly in place by a high-visibility barrier-style restraint arm, and a restraining force of 32,000 lbs prevents accidental separation from the loading dock during the cargo handling process.

The TL85 may be left engaged overnight to deter trailer theft

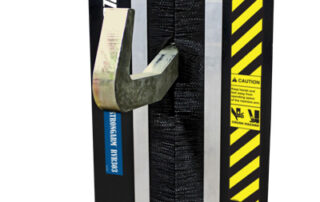

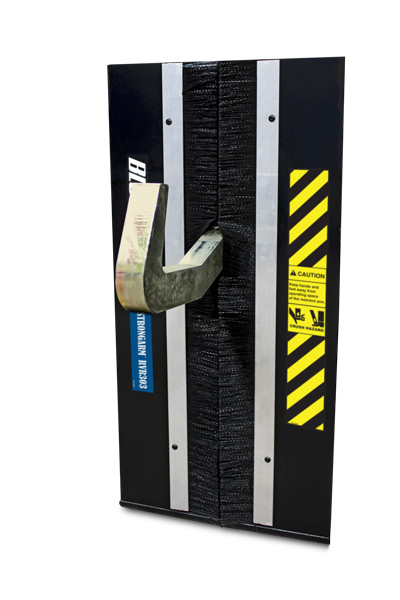

Blue Giant StrongArm RVR303 Hydraulic Recessed Pit Hook Trailer Restraint

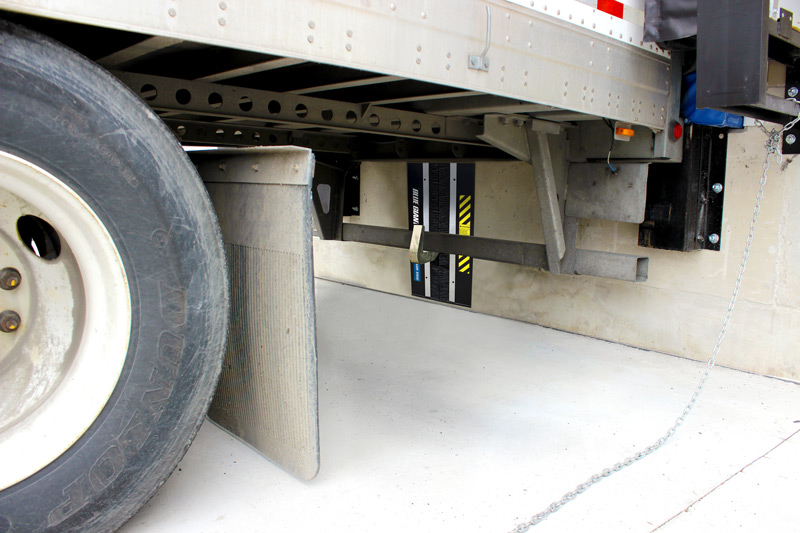

StrongArm RVR303 Hydraulic Trailer Restraint

The Blue Giant StrongArm™ RVR303 has a recessed hook design that combines high levels of safety and performance integrity.

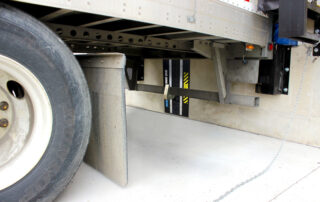

Trucks and trailers are held firmly in place by a high-visibility barrier-style restraint hook, preventing accidental separation from the loading dock during the cargo handling process. After each use, the RVR303 is stored within the dock face and protected with brush sealing to remain clear of the debris zone.

The RVR303 may be left engaged overnight to deter trailer theft.

Blue Giant StrongArm RVR303 Hydraulic Recessed Pit Hook Trailer Restraint

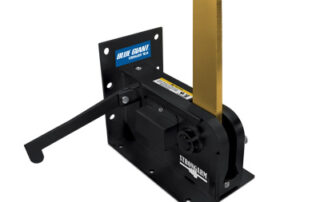

Blue Giant StrongArm ML10 Powder-Coat Mechanical Barrier Trailer Restraint

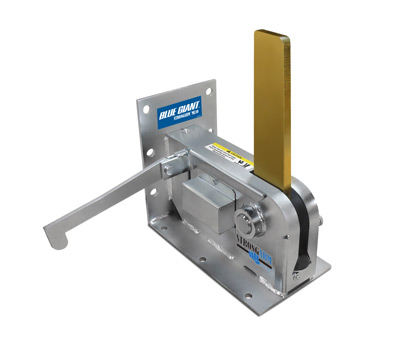

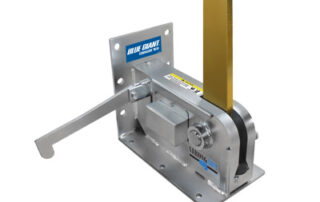

StrongArm ML10 Mechanical Trailer Restraint

The manually operated StrongArm ML10 is engaged and released by a single detachable control rod. Because no bending or lifting is required, the risk of employee strain or injury is significantly reduced.

Strong Hold

30,000 lb of restraining force prevents premature truck departure during loading and unloading. The unit can be left in a locked position overnight to discourage trailer theft.

No Power Necessary

Certain applications, such as chemical handling facilities or grain storage locations, involve explosive substances and require limited interaction with electrical devices. The ML10 is a safe and reliable restraining device for these situations because of its entirely mechanical operation.

Non-Impact Operation

The passive engagement style results in less wear and tear and lowers maintenance requirements.

With a vertical restraining range of 11″ to 26″  above ground and horizontal reach of 13″, the ML10 is compatible with virtually all modern trucks and trailers, even those with air-ride suspension systems

Blue Genius Gold Series III Control Panel dock leveler trailer vehicle restraint

Easy to Operate

Food and Pharmaceutical Safe

The NEMA4X (moisture and corrosion resistant) push-button control station for easy operations.

The control panel can be upgraded to a Blue Genius Gold III control panel to integrate with your trailer restraints, doors and/or lights.

Photos

Videos

HVR303 Electric Rotating Hook Trailer Restraint

SVR303 Hydraulic Barrier Trailer Restraint Submersion Test

SVR303 Hydraulic Barrier Trailer Restraint Operation

ML10 Mechanical Trailer Restraint

Blue Genius Controls - Normal Operation

Blue Genius Controls - Keypad Bypass

Blue Genius Controls - No ICC Bar Detected

Customers That Love This Product

Click a logo below to view the success story

Models

HVR303 Electric Rotating Hook Vehicle Restraint

The StrongArm HVR303 has a hook-style arm that uses electronic compensation float to secure all trailers, even those with air-ride suspension systems It can be interlocked with Blue Giant air-powered dock levelers to build a 'green' loading dock solution.

SVR303 Hydraulic Barrier Vehicle Restraint

The StrongArm SVR303 delivers advanced functionality and security to loading dock operations. A high-visibility barrier-style restraint arm that uses passive engagement keep an ICC bar secured, resulting in less wear and tear and a lower lifetime cost of ownership.

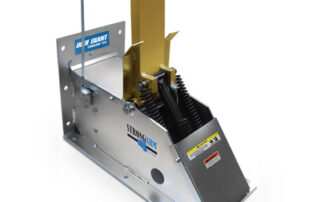

TL85 Hydraulic Barrier Vehicle Restraint

The restraining technology of the StrongArm TL85 centers around a non-impact "swing-up" arm design to confine a vehicle's rear impact guard or ICC bar. Passive engagement style reduces wear and tear and substantially lowers the lifetime cost of ownership.

RVR303 Hydraulic Pit Hook Vehicle Restraint

The StrongArm RVR303 has a strategic recessed hook design that combines high levels of safety and performance integrity.

ML10 Mechanical Barrier Vehicle Restraint

Simplicity of design, heavy-duty construction materials and minimal maintenance and lubrication requirements reflect on long-term low cost of operation.

Model Comparison Chart

HVR303 SVR303 TL85 RVR303 ML10
Type Electric Hydraulic Hydraulic Hydraulic Mechanical
Style Rotating Hook Barrier Barrier Recessed Pit Hook Barrier
Holding Active / Postive Force Passive / Non-Impact Passive / Non-Impact Active / Postive Force Passive / Non-Impact
Vertical operating range 9"-25" 8"-26" 12"-26" 8"-30" 11"-26"
Restraining force 32,000 lb 35,000 lb 32,000 lb 32,000 lb 30,000 lb
Submersible Yes up to 3.3'
IP67-rated motor
Yes
NEMA6 IPS sensor and double-acting hydraulic cylinders
No No No
Left in lock position overnight to prevent trailer theft No
Yes

Customizations

Complete Communication Systems for All Models

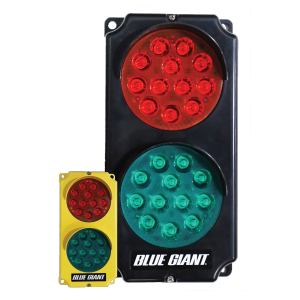

Flashing LED signal lights for inside and outside usage.
Wall-mounted sign with reverse writing for easy driver readability.
Control panel with simple push-button operation. Keypad override to improve safety by making sure only key members have access to override the restraint. The control panel can be upgraded to the Blue Genius Gold Series to integrate with your dock leveler.

Additional Options

  • Extension plates.
  • Zinc finish for extension plates.

Warranty

  • 2-year: Structural (Channel weldment, carriage weldment and rotating hook)
  • 2-year: Electrical Components (Electric motor assembly excluding clutch brake adjustments)
  • 2-year: Labor and Travel
  • 5-year: Structural (Vehicle restraint body and locking arm. Not including pins, bushings, cylinders and wearable items)
  • 4-year: Hydraulics (Powerpack motor, hydraulic pump, hydraulic hoses, hydraulic fittings, and cylinders)
  • 2-year: Labor and Travel
  • 5-year: Structural (Vehicle restraint body and locking arm. Not including pins, bushings, cylinders and wearable items)
  • 1-year: Hydraulics
  • 1-year: Labor and Travel
  • 5-year: Structural (Vehicle restraint frame and hook. Not including pins, bushings, cylinders and wearable items)
  • 4-year: Hydraulics (Powerpack motor, hydraulic pump, hydraulic hoses, hydraulic fittings, and cylinders)
  • 2-year: Electrical (Sensors and guidance channel assembly)
  • 2-year: Labor and Travel
  • 5-year: Structural (Vehicle restraint body and locking arm. Not including pins, bushings and wearable items)
  • 1-year: Parts, Labor and Travel
