Automatic Sliding Door Operators and Systems for Entrances
Jump to: Information | Photos | Customers | Models | Comparison | Customizations | Warranty
Protect Against Pests
Retrofit for Any Door
Stop the Spread of Germs
- Protect against pests: Prevents doors from being left open when not in use and letting pests in.
- Install or retrofit: To your existing manual or push entrance swing doors.
- Government compliant: ADA, ULC and ANASI 156.19 compliant.
- Stop the spread of germs: Can be paired up with an automatic or touchless solution so you never have to worry about touching a door to open it again. Simply open a door with a hand wave, a tap of an app on your phone or by approaching it.
Automatic Sliding Door Sytems Perfect for:
✓ Fire and smoke doors
✓ Rescue and escape routes
✓ Security doors with specific resistance classes (WK2 + WK3)
✓ Corrosion-free and waterproof doors
✓ Hermetic doors
✓ All-glass doors
Information
Linear Sliding Doors
Telescope Sliding Doors
Curved Sliding Doors
Angular Sliding Doors
Multi-Functional Sliding Doors
Automatic sliding door systems offer great convenience and flexibility for hands-free access. Our wide range of products ensures you can find the right door solution for any building, whether it’s a new construction or a retrofit.
Sliding Door System Features
- Air-lock function: Two coordinated door systems manage access.
- Access control: Controlled by key, badge, video monitoring, and biometric data.
- Hold-up closure: The door closes immediately and without reversal when a button is pressed.
- Building automation: Integration into existing systems.

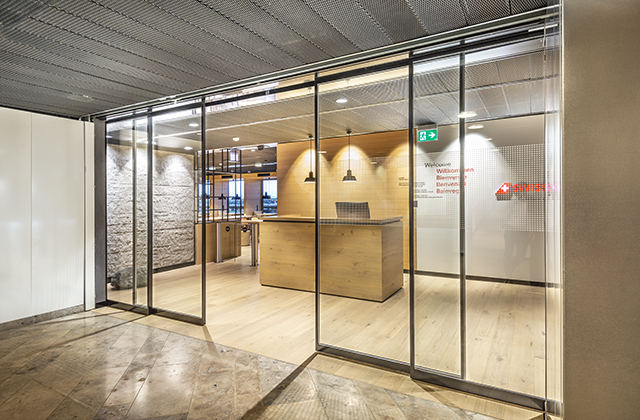

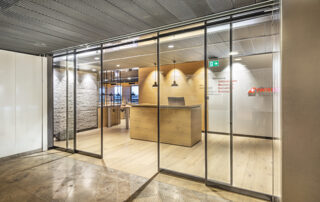

Linear Sliding Doors
Linear sliding doors are a classic choice in the automatic sliding door category. They work well in any location with enough side space. These doors open elegantly and simply, sliding away from pedestrians to enhance safety.

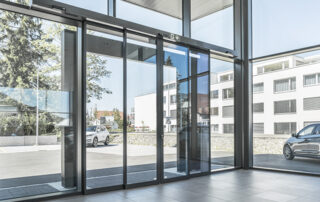

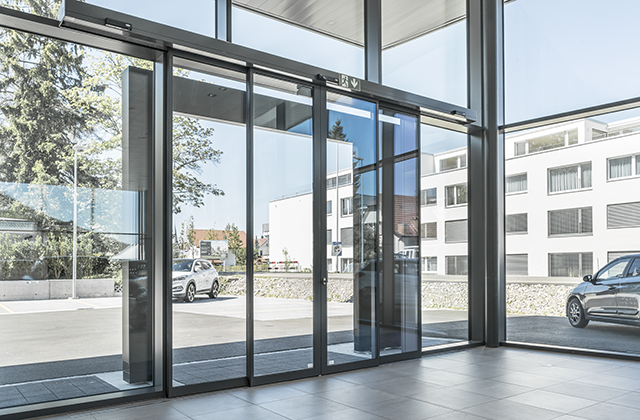

Telescope Sliding Doors
Telescope sliding doors are suitable for use on every occasion when a large opening width is required but where structural considerations do not permit wide door leaves.

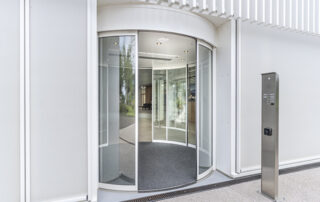

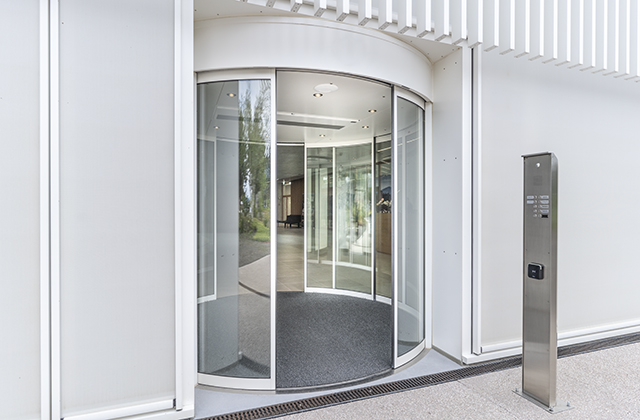

Curved Sliding Doors
A curved sliding door instantly shows off style and character, making a strong architectural statement. It adds a sense of grandeur to the entrance area and is up to 40% larger than regular sliding doors.

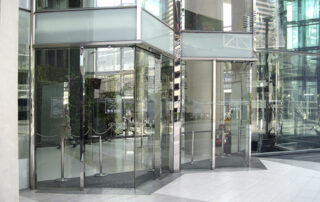

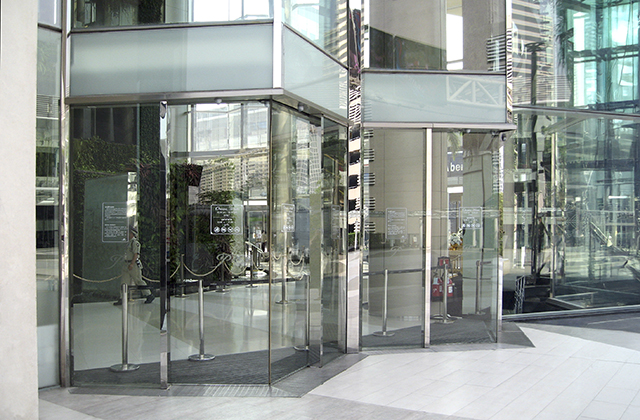

Angular Sliding Doors
The angular sliding door is a great way to make the entrance of a modern building stand out. You can set the angle to face either inside or outside, and whichever you choose, it will create an elegant and impressive entrance.

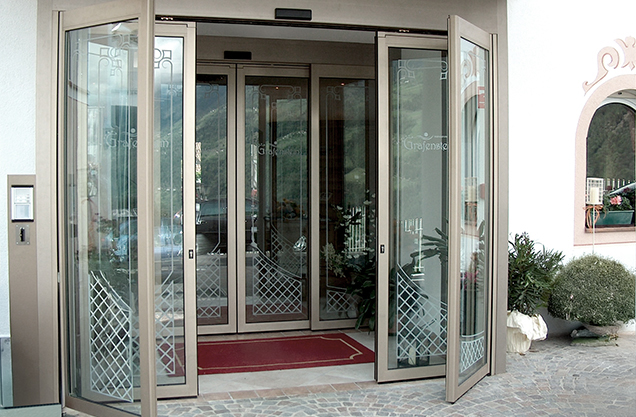

Multi-Functional Sliding Doors
The multi-functional sliding door is designed to handle various tasks efficiently. Its automatic operation offers a warm welcome to passers-by and visitors alike. In emergencies or during high-traffic events, such as in a concert hall, its break-out function ensures a quick and reliable exit. On the other hand, individual door leaves can be securely locked to prevent unwanted entry.
Ideal Sliding Door Applications
- Office buildings
- Shops
- Convenience stores
- Apartment blocks
- Hotels
- Restaurants
- Care homes
- Hospitals
- Conference centres
- Exhibition buildings
Photos
Models
 |

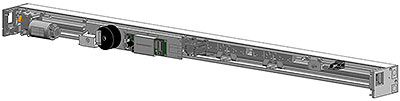

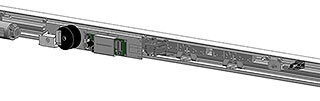

2101 Sliding Door DriveThe 2101 sliding door drive is designed for both internal and external doors, offering barrier-free and easy-to-use access for all types of users. It features a small installation height of 100 mm, excellent reliability, low maintenance costs, and quiet leaf movements for a pleasing ambiance |
 |
iMotion 2302The iMotion 2302 sliding door drive is a powerful and flexible drive known for its long working life and extremely dynamic, smooth, and silent door movements. It offers excellent reliability, low maintenance costs, and is suitable for both external and internal doors, including noise-sensitive areas |
Model Comparison Chart
| 2101 | iMotion 2302 | ||
| Application | |||
| Number of Leaves | |||
| Door Types | Linear | Linear or telescope | |
| Traffic | Average footfall. | Heavy footfall. | |
| Opening Widths | Single leaf: 800 – 2000 mm Double leaf: 800 – 2900 mm |
Standard: 700 – 3000 mm Telescope, double-leaf: 800 – 3000 mm Telescope, four leaves: 1600 – 3800 mm |
|
| Door Weight | Max. door leaf weight: 1 × 100 kg or 2 × 100 kg | Single-leaf: 1 × 200 kg / 1 × 150 kg (rescue and escape routes) Double-leaf: 2 × 180 kg / 2 × 130 kg (rescue and escape routes) Telescope, double-leaf: 2 × 120 kg Telescope, four leaves: 4 × 100 kg |
Door leaf weights up to 600 kg. |
| Motor | Electro-mechanical sliding door drive with a DC motor. | Electromechanical sliding door drive with a gearless AC synchronous motor. | |
| Installation Height | 100 mm installation height. | 150 mm installation height. | |
| User Interface Modes | 3 operating modes (automatic, open, closed) or upgrade to 6 operating modes (additionally: reduced opening, exit, manual operation). | 6 operating modes (automatic, reduced opening, exit, permanently open, closed, manual operation). | |
| Functions |
|
|
|
Customizations
- User interface with 3 operating modes (automatic, open, closed).
- User interface with 6 operating modes (additionally: reduced opening, exit, manual operation).
- Electromechanical lock.
- Manual disengagement, interior and exterior.
- Key switch.
- Battery module for emergency openings.
- Battery unit for emergency openings and limited continuous operation.
- Connection facilities for sensors complying with EN 16005.
- Electromechanical locking.
- Key switch.
- Mechanical emergency opening.
- Battery module for emergency operation.
- Can be set for low energy operation.
Warranty
- 2 year limited on parts.
