Automatic Swing Door Operator for Entrances

Brochure
Prevent insects, pests, rodents from entering your facility

Protect Against Pests

Prevent insects, pests, rodents from entering your facility

Retrofit for Any Door

Prevent cross contamination with touchless solutions

Stop the Spread of Germs

Touchless Low Energy Door Operator (App Controlled)

The SW60 is a low-profile and low-energy door operator. Its sleek and slim design makes it easy to convert any existing manual swing door to an automatic door, even when overhead space is limited.

  • Stop the spread of germs: Can be paired up with an automatic or touchless solution so you never have to worry about touching a door to open it again. Simply open a door with a hand wave, a tap of an app on your phone or by approaching it.
  • Government compliant: ADA, ULC and ANASI 156.19 compliant.
  • Protect against pests: Prevents doors from being left open when not in use and letting pests in.
  • Install or retrofit: To your existing manual or push entrance swing doors.

An Automatic Swing Door Operator Perfect for:

✓ Interior doors
✓ Exterior doors
✓ Entrance doors
✓ Office to warehouse doors
✓ Washroom doors

Information

Works with New or Existing Door Frames

Designed to automate nearly any new or existing single, double or dual egress doorframe. Furthermore, it’s easy to integrate with any type of safety, activation, building access and security systems.

Low Energy Use

All our swing door operators have a low current draw, with the SW60 only using a maximum of 90W.  Combined with adjustable opening and closing speeds, these swing door operators reduce energy usage for a prompt return on your investment.

Meets Government Standards

All features, components and accessories meet ANSI/BHMA 156.19 standards, are ADA compliant, ULC approved and fire rated.

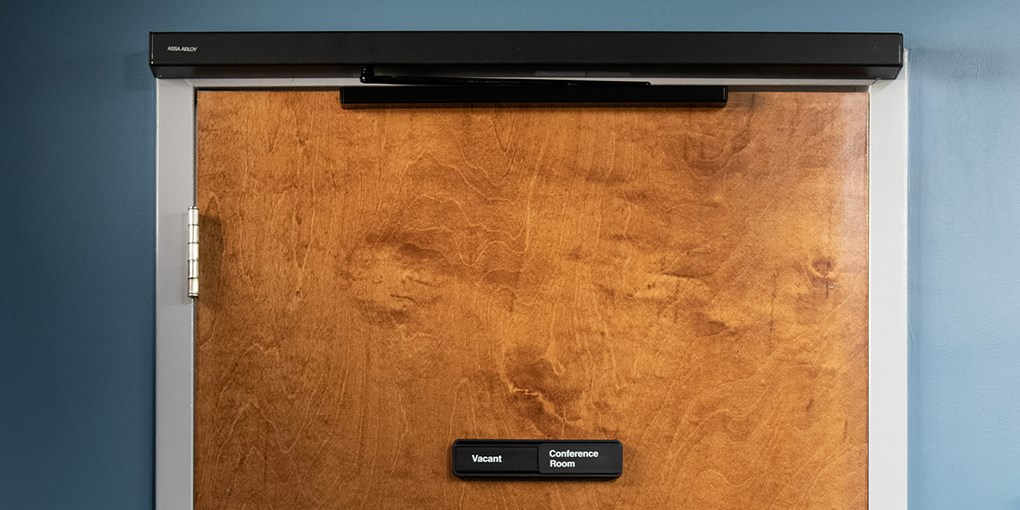

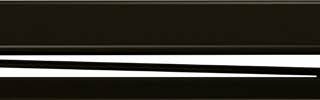

automatic entrance swing door operator low energy low profile slim clear anodized finish silver automatic entrance swing door operator low energy low profile slim bronze finish automatic entrance swing door operator low energy low profile slim washroom automatic entrance swing door operator low energy low profile slim conference room

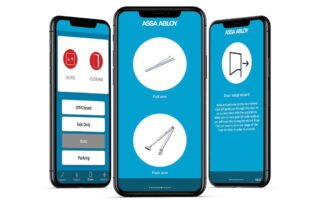

Mobile App-Controlled

The low profile and low energy swing door operator (SW60) is mobile app-controlled.

In addition to being open up the door with a motion sensor, touchless wave sensor, button or power assist. This slim door operator can open and close a door with a tap of a button in an app on your phone.

automatic swing door operator phone mobile app

Speed Up Workflows

Pair up your pedestrian swing door opener with a touchless wave sensor or automatic motion sensor to speed up workflows and prevent cross-contamination from multiple people touching the same push button.

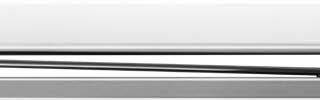

automatic entrance swing door operator low energy low profile slim clear anodized finish silver

Swing Door Operator

+

OR

AAADM
Automatic swing entrance door operator technician installation

AAADM Certified

Get your automatic swing entrance doors installed by our Automatic Door Technicians who are AAADM certified (American Association of Automatic Door Manufacturers).

Make sure your doors are up to ANASI and OSHA codes with our certified service professionals.

Learn More

Photos

Customers That Love These Products

Read Customer Success Stories

Models

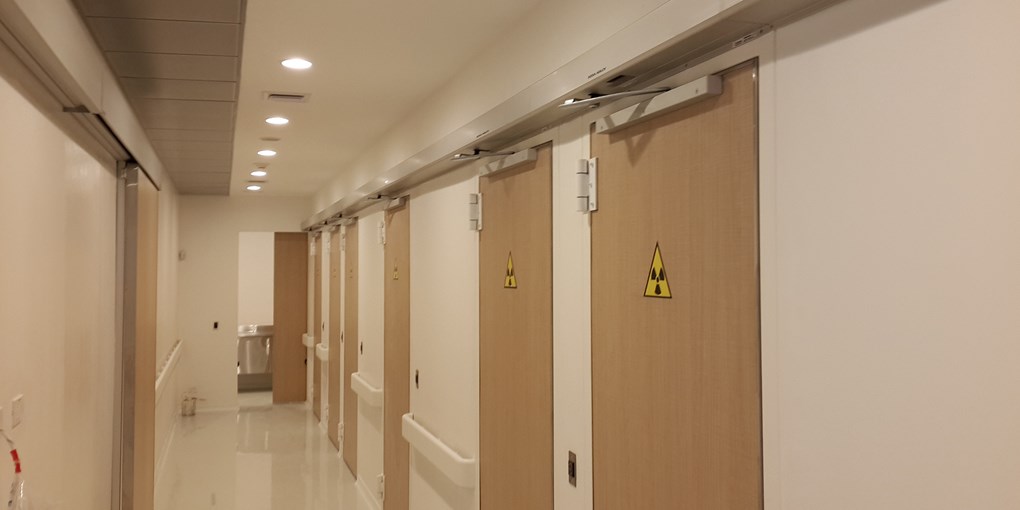

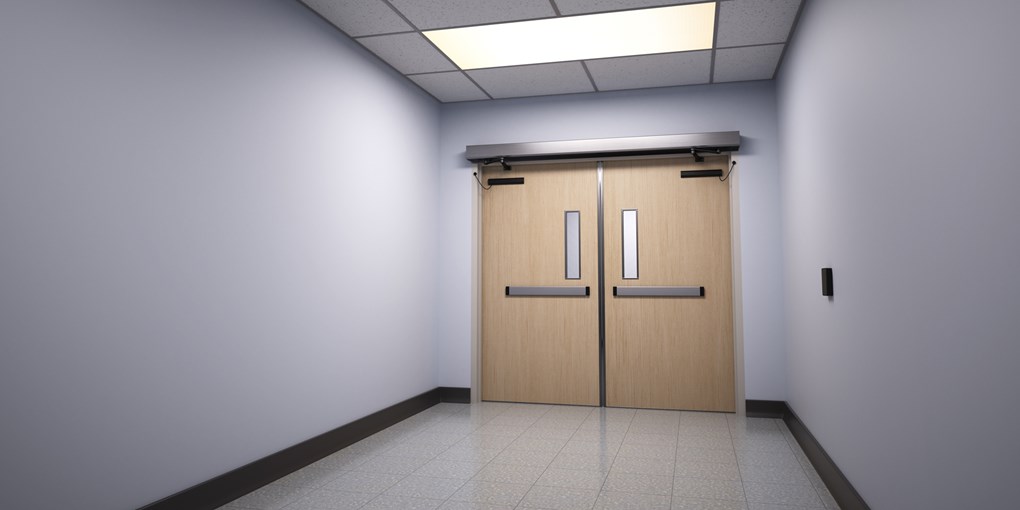

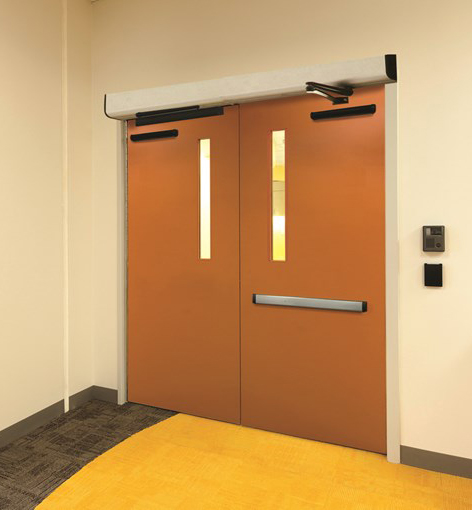

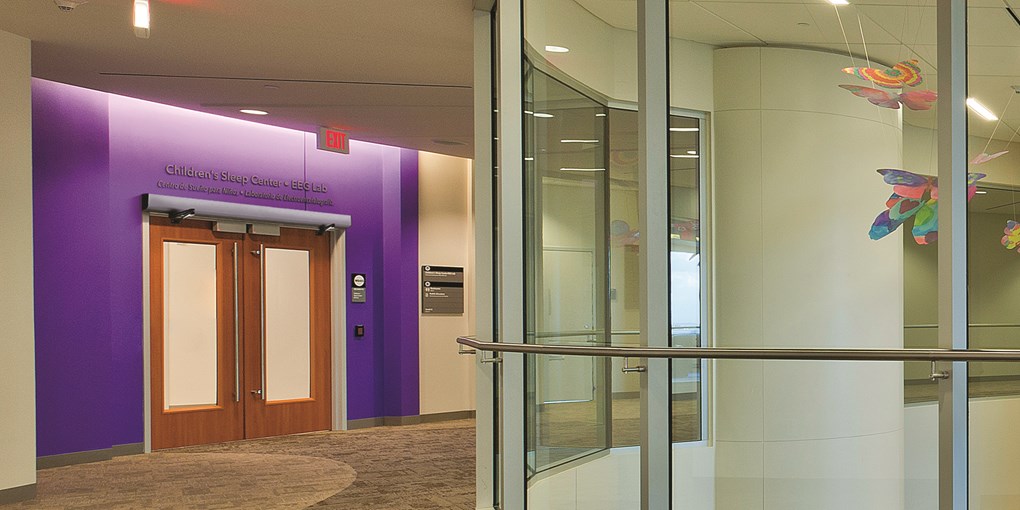

Surface Mounted or Concealed Swing Door Operator (SW200i)

The SW200i surface mounted has heavy-duty electro-mechanical operator is suitable for use on large heavy doors, yet adaptable enough to be used in low energy applications. That makes the SW200i surface mounted door operators ideal for exterior and interior entryways, corridors and a variety of other applications.

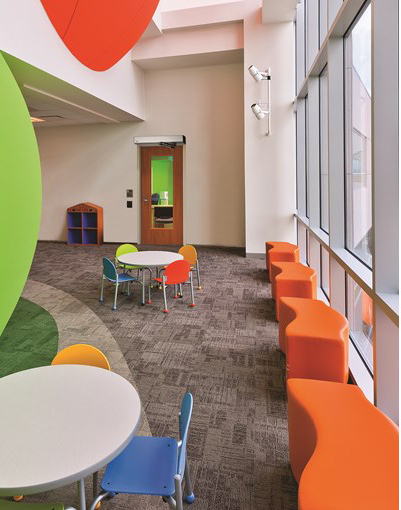

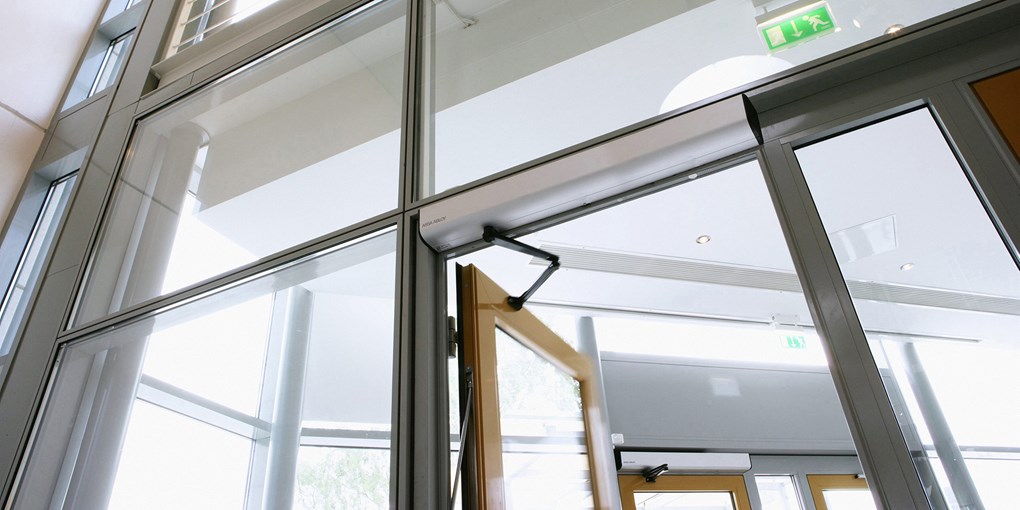

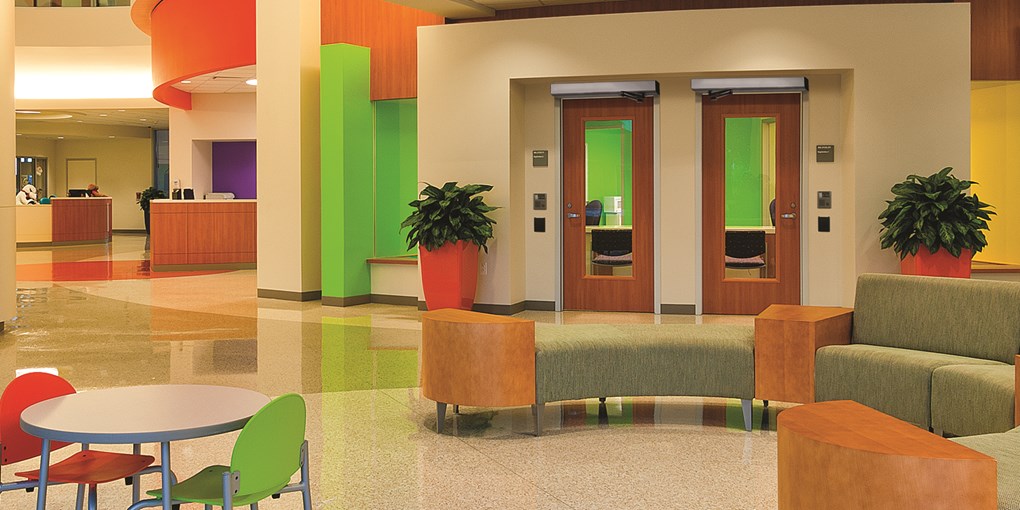

Low Energy Swing Door Operator (SW100)

The SW100 is the ideal low energy automatic door operator for applications that need reliable, durable entrances with the strength to withstand continuous usage. The electro-mechanical surface mounted operator is extremely quiet and flexible with unique features not found in other low energy operators, including stack pressure compensation, lock circuit retry, electronic dampening, power assist, obstruction control and low power consumption. With adjustable open and closing speeds, the SW100 can be configured to meet precise requirements, eliminating wear on the motor and safeguarding the life of the product. The SW100 also offers safety features to match its excellent performance, helping foot traffic flow smoothly and efficiently.

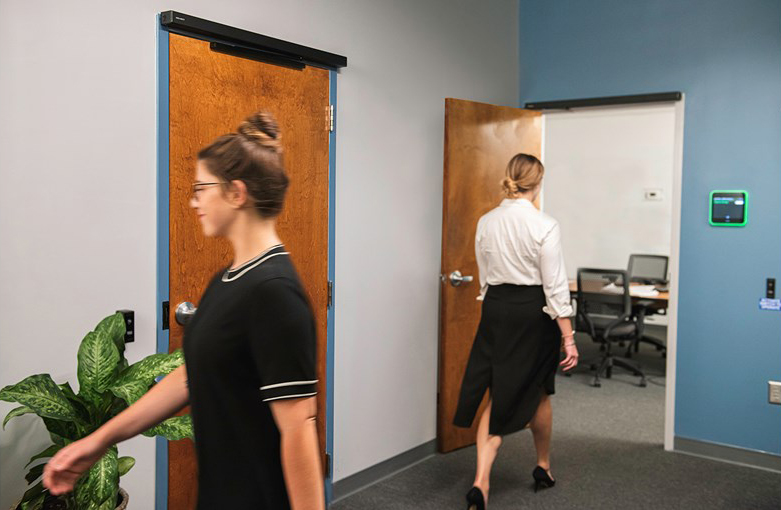

Low Profile Low Energy Swing Door Operator (SW60)

The SW60 is the newest innovation in door technology. The SW60 is aesthetically appealing with a sleek design and ability to fit in spaces with limited overhead space. With its slim profile, app compatibility and quick install time, the SW60 offers tremendous functionality and flexibility when it comes to converting existing manual doors to automatic. This operator is the perfect choice for indoor applications for single doors such as restrooms, offices, senior care or public buildings.

Model Comparison Chart

SW200i SW100 SW60
Door types Single
Dual Egres
Simultaneous Pair
Single
Double
Single
Interior/Exterior
Interior and exterior
Operator Electro-mechanical, non-handed operator, 24 volt, 5/16 hp motor Electro-mechanical, non-handed operator, 24 volt, 5/16 hp motor Electro-mechanical, non-handed operator
ANSI Compliance Field selectable full pedestrian usage (ANSI A156.10) and low energy (ANSI A156.19) Low energy (ANSI A156.19) Low energy (ANSI A156.19)
Door Weight Up to 700 pounds per operator 100-200lbs per operator Up to 200 pounds per operator
Door Size
Up to 48”
Manual Push Force
Adjustable from 5 lbf – 15 lbf
Hold Open Time Adjustable from 1.5 seconds to 30 seconds Adjustable from 1.5 seconds to 30 seconds Adjustable from 2 seconds to 6 hours
Profile Aesthetically pleasing appearance: 4-5/16” (109mm) high by 5-1/8” (130mm) deep Aestheticall pleasing appearance: 4-5/16” (109mm) high by 5-1/8” (130mm) deep Aesthetically pleasing, low profile appearance: 1-7/8” high by 2-3/8” deep
Voltage
24 VDC
Power Consumption Low-energy - Max. 300W Low-energy- Average electrical power required to open a 36” door is 25W resulting in lower running costs with a max of 230W Low-energy - Max. 90W
Finishes Clear anodized, powder coat, Kynar or clad finish Clear anodized, powder coat, Kynar or clad finish Clear anodized or bronze finish
Configurations Surface applied, side load or bottom load Surface applied Surface applied
Fire Rated
Yes
Authorities
  • UL/CUL approved - UL10C, UL325, UL991, UL244A, UL1998, UL1310
  • UL Listed Fire Door Operator - UL10C
  • ANSI A156.10 / ANSI A156.19
  • IBC and CBC
  • CAN/CSA-C22.2 NO 223-M91 and CAN/CSA-C22.2 NO 223-M92
  • UL/CUL approved - UL325 UL/CUL
  • UL Listed Fire Door Operator - UL10C
  • ANSI A156.19
  • IBC and CBC
  • UL/CUL approved - UL325 UL/CUL
  • UL Listed Fire Door Operator - UL10C
  • ANSI A156.19
Applications
Hospitals, retail stores, schools, colleges, universities, airports, convention centers, casinos, industrial buildings, offices and washrooms.

Customizations

Options
  • Clear and dark bronze anodized standard finish.
  • Additional safety devices can be easily added

Warranty

  • 1 year limited.
