Stationary yard ramp and mobile yard ramp

Stationary and mobile yard ramps

Information

Mobile yard ramps make it easy to load and unload trailers

The light-weight aluminum mobile yard ramp permits the loading and unloading of trailers and railcars with a propane-operated fork lift in areas where normal docking facilities are not available.

Model: Mobile yard ramp

The mobile yard ramp can be easily moved on either six pneumatic or six solid cushion tires. Mobile yard ramp capacities range from 11,000 to 24,000 pounds; the standard operating width is 63″ or 74″. A railcar platform is recommended for use with railcars. More features include:
• A hydraulic hand pump: Used to raise the front end of the ramp from 38″ to 61″. The pump is on the side behind a hinged door, with a pocket for storing the handle, and an easily accessible release valve.
• A swivel head towing clamp: For moving the ramp by inserting a fork lift blade.
• Rounded curbs: To save wear on fork lift tires.
• Serrated open grating: For positive traction in all weather.
• Aluminum tread plate lead-on section: The lead on section is 3′ long and either 63″ or 74″ wide depending on model and is constructed of 1/2″ 6061 T-6 aluminum.
• Two 8′ safety chains: One on either side of the top end, to secure the ramp to the vehicle or dock while in use.
• Pneumatic or solid cushion tires: Each mobile yard ramp has either six pneumatic or four solid cushion tires.

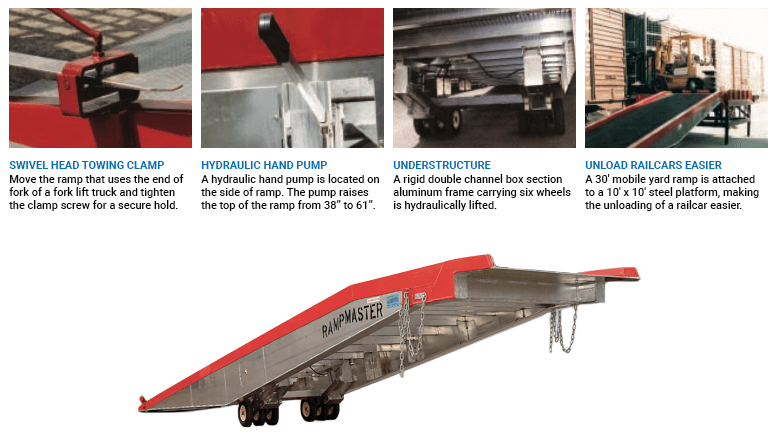

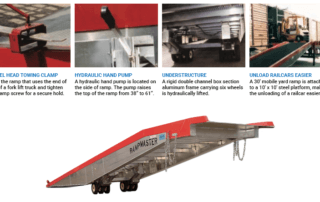

The inner workings of a mobile yard ramp

Mobile yard ramp
A hydraulic hand pump is located on the side of the ramp which raises the top from 38" to 61".
Mobile yard ramp
A rigid double channel box section aluminum frame carrying six wheels is lifted by a hydraulic mechanism.
Mobile yard ramp
A 30' mobile yard ramp is attached to a 10' x 10' steel platform, making the unloading of a railcar easier.
Yard ramp

Stationary yard ramp for loading and unloading trailers without using docking facilities

The stationary steel yard ramp eliminates those difficult and time-consuming shipping and receiving problems—ideal for organizations that do not have docking facilities or just need additional space. A stationary yard ramp is easy to install and can be moved to another location when necessary.

Stationary yard ramps are available in various lengths, widths and capacities. The lead-on section of the ramp is steel tread plate while the main deck uses an all-weather open serrated steel grating. All stationary ramps are custom-made to suit specifications, with all surfaces painted to reduce rust and to give your ramp a pleasant appearance.

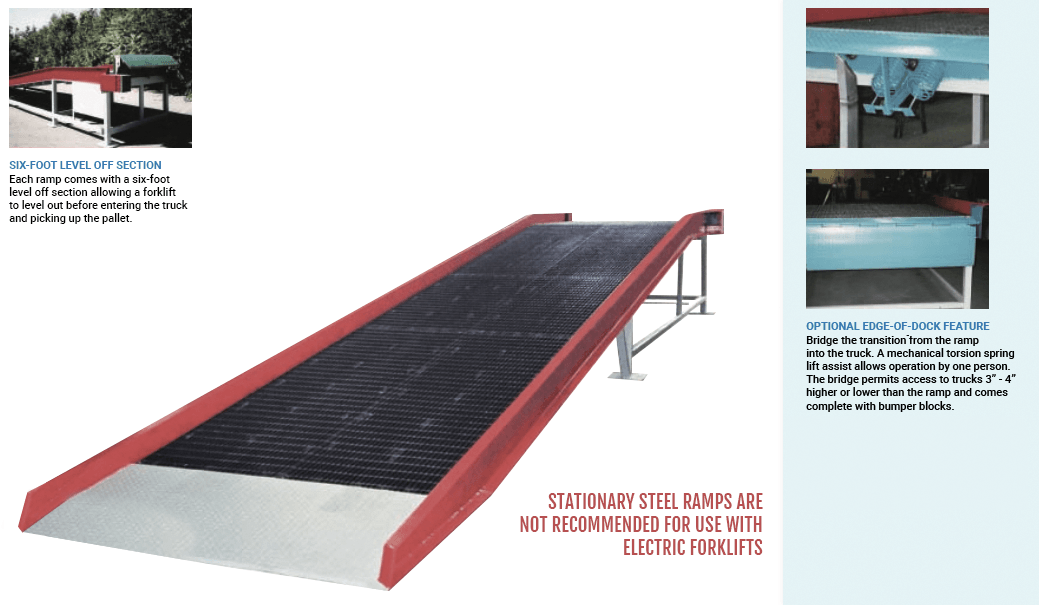

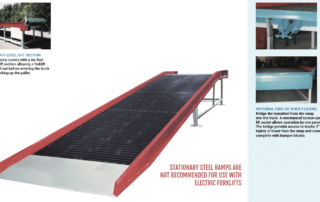

The inner workings of a stationary yard ramp

Stationary yard ramp
The stationary steel yard ramp comes with a six-foot level off section allowing a forklift to level out before entering the truck and picking up the pallet.
Stationary yard ramp
The edge-of-dock in the down position and the six-foot level off section enable a forklift to enter a truck with the forks parallel to the floor.
Stationary yard ramp
The optional edge-of-dock feature bridges the transition from the ramp into the truck. A mechanical torsion spring lift assist allows operation by one person. The bridge permits access to trucks 3"-4" higher or lower than the ramp and comes complete with bumper blocks.

Photos

Customers that love this product

Models

Mobile yard ramp

Mobile yard ramps permit the loading and unloading of trailers and railcars with a propane operated fork lift in areas where normal docking facilities are not available and range in capacities from 11,000 to 24,000 pounds.


Stationary yard ramp

The stationary yard ramp is ideal for organizations that do not have docking facilities or just need additional space. Each stationary yard ramp is custom-made to your specifications with all surfaces painted to reduce rust and to give your ramp a pleasant appearance and comes in a variety of lengths, widths and capacities.

Model comparison chart

Mobile yard ramp Stationary yard ramp
Recommended use Where no docking facilities are available Where no docking facilities are available or where there is limited space
Capacities 11,000-24,000 lbs Various
Compatibility with edge-of-dock No Yes (optional feature)

Warranty

• 1 year limited.
