Dock board

Dock boards and dock plates

Information

Dock boards and dock plates provide numerous benefits

Prevent potential forklift runoff or tripping hazards caused by uneven ground for personnel. Dock boards and dock plates increase safety and worker productivity with respect to loading and offloading by creating a smoother transition from the trailer to the dock floor.

Dock boards prevent accidental runoff

Dock boards are designed to handle low-to-medium forklift traffic. They incorporate curbs which are bolted to the aluminum diamond pattern plate for increased strength while preventing runoff. The dock board’s deck surface comes in aluminum, steel and ultra-light material to provide a safe, smooth transition into the trailer. These dock boards support load capacities of up to 24,000 pounds.

Model: Dock board
Model: Dock plate

Dock plates used for non-powered loading applications

Dock plates are recommended for non-powered loading applications (pallet trucks, carts, two-wheelers, etc.) to ride smoothly over the machine-beveled deck edges. Its resilient plate material is available in aluminum or steel, capable of supporting up to 19,500 pounds.

Calculating the maximum height differential

Truck height — Dock height = Maximum height differential

Dock board and dock plate diagram

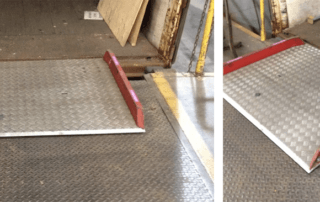

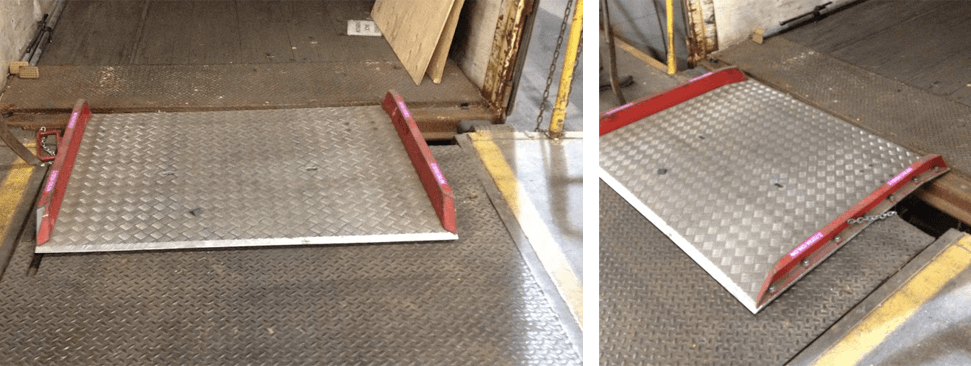

Photos

Customers that love this product

Models

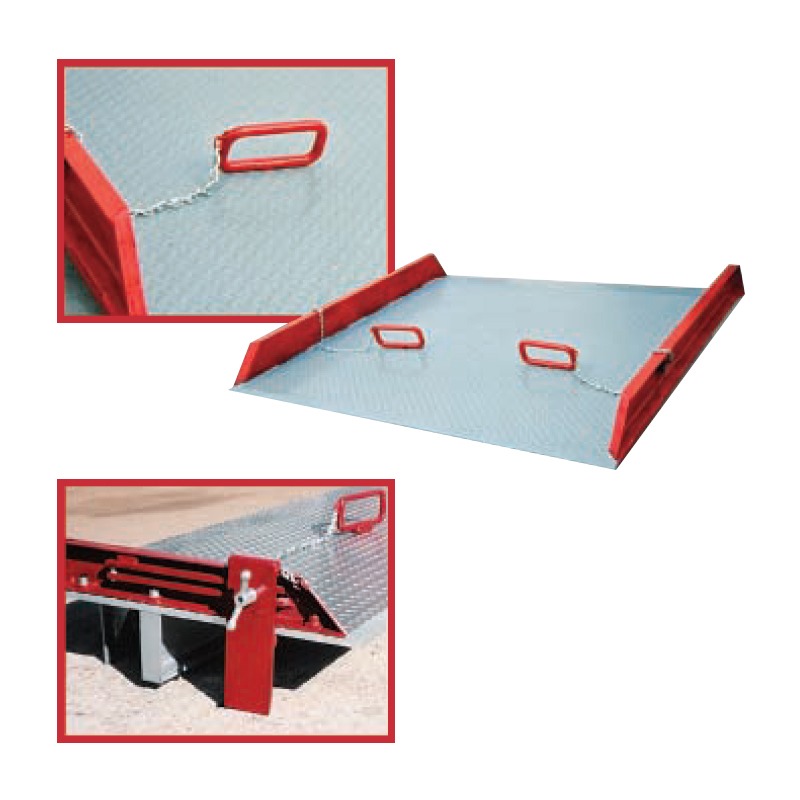

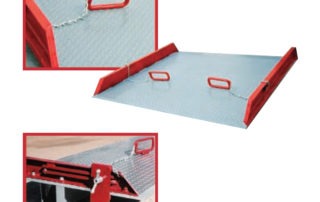

Dock board

Dock boards are designed to handle low-to-medium forklift traffic and feature bolted steel curbs to prevent runoff. The dock board is capable of handling up to 24,000 pounds.


Dock plate

Dock plates are recommended for non-powered loading applications (pallet trucks, carts, two-wheelers, etc.) and able to support up to 19,500 pounds.

Model comparison chart

Dock board Dock plate
Recommended application Low-to-medium forklift traffic Non-powered loading applications
Types Aluminum, steel, ultra-light Aluminum, steel
Height differential 5", 6", 7", 8", 9", 10", 11", 13" 3", 4", 5", 6", 7", 8", 9", 10", 11"
Capacities 2,000-24,000 lbs 650-19,500 lbs

Warranty

• 1 year limited.

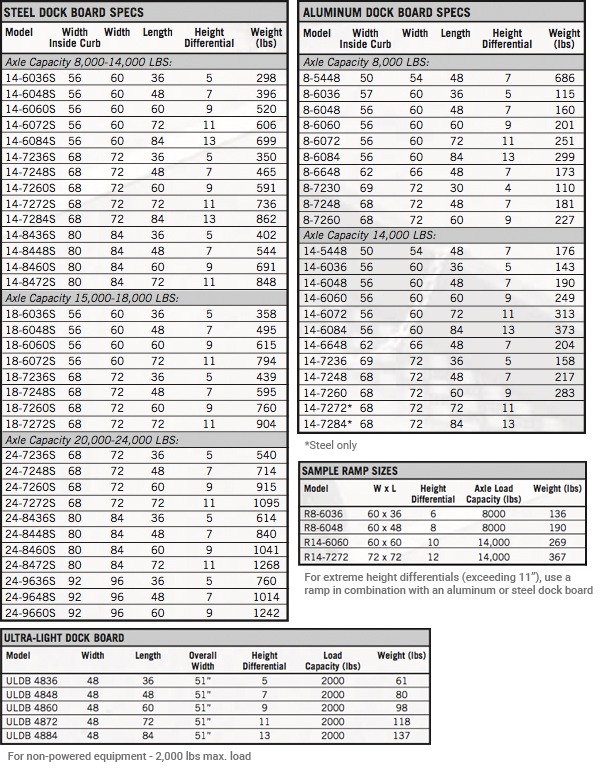

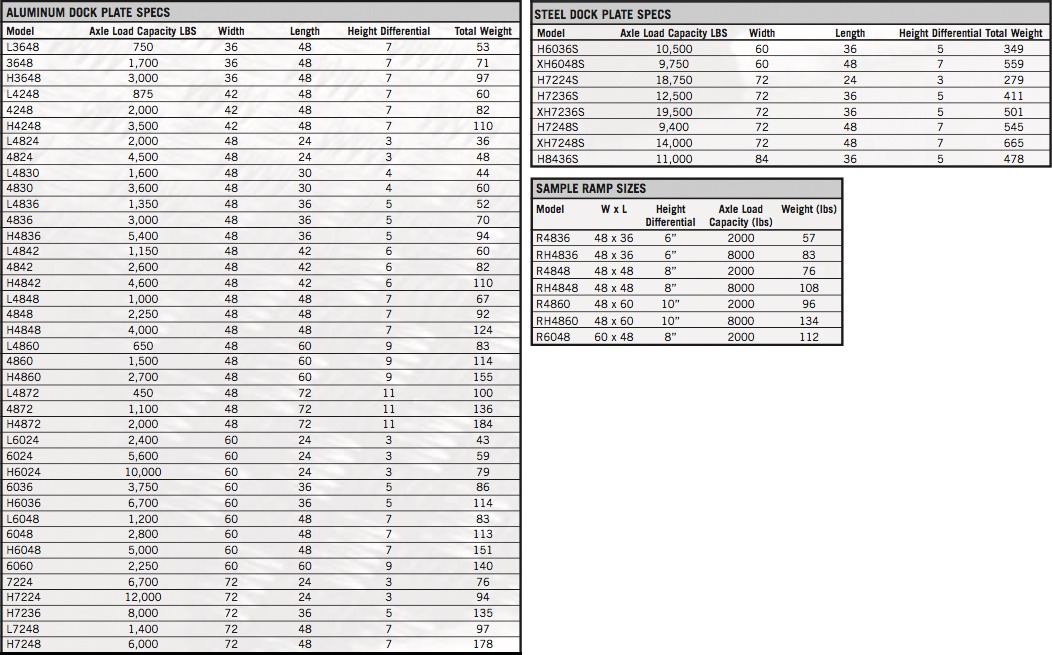

Specifications

Related products or services
