1400 SEL Cool-Master Door for Coolers
Jump to: Activation | Photos | Customers | Customizations | Warranty | Specifications
Information
The energy-efficient cooler door
The Speed-Commander 1400 SEL Cool-Master high-speed cooler door is highly energy-efficient with fast opening speeds of up to 80″/second and closing speeds of up to 30″/second without compromising on safety. It incorporates a coil-free built-in light grid up to eight feet high and incorporates a soft bottom edge that automatically reverses in case of accidental impact, greatly reducing maintenance costs. The 400 SEL cooler door comes with a standard, full-width vision panel to provide maximum visibility for personnel in high-traffic areas.
Ideal applications
The Speed-Commander 1400 SEL Cool-Master door is the ideal solution for agricultural, medical and cooler distribution facilities.
Horizontal spring steel wind rib provides wind resistance
The Speed-Commander 1400 SEL Cool-Master is equipped with built-in, spring steel wind ribs designed to accommodate air pressure up to 15 mph with the door in its static position.
Activation Method
The most important aspect of any door project is deciding on your activation method to:
✓ Prevent the door from being hit
✓ Prevent the door from hitting people
✓ Extend the life of the door
✓ Improve productivity
✓ Decrease downtime and maintenance
✓ Save energy
Motion, presence and safety all in one. These sensors can be set to open for only incoming pedestrian or forklift traffic. Speed up workflows by installing or retrofitting dock, industrial, pedestrian and entrance doors with automatic motion sensors. View »
Prevent cross-contamination by never having to touch a door to open it. Install or retrofit dock, industrial and pedestrian doors with touchless wave sensors. View »

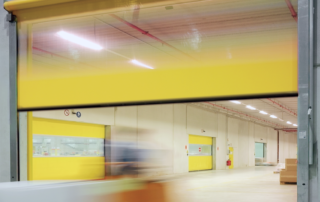

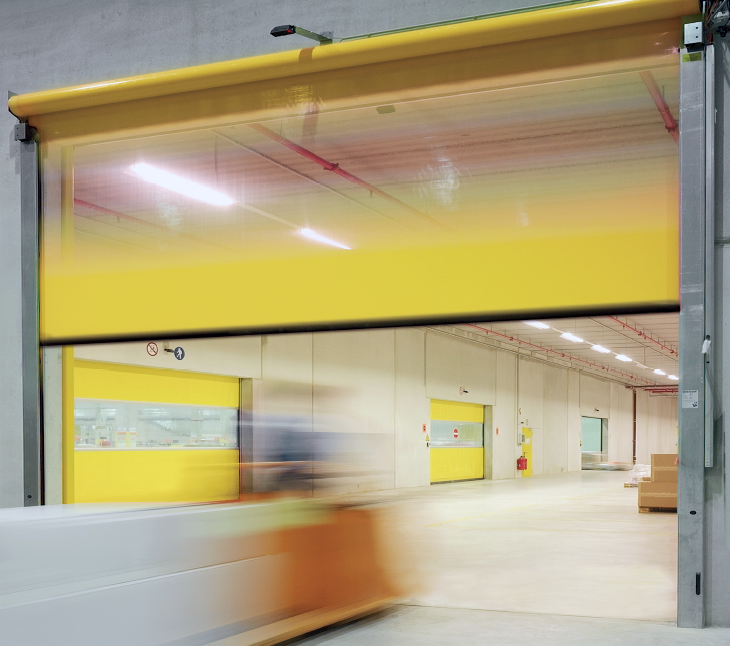

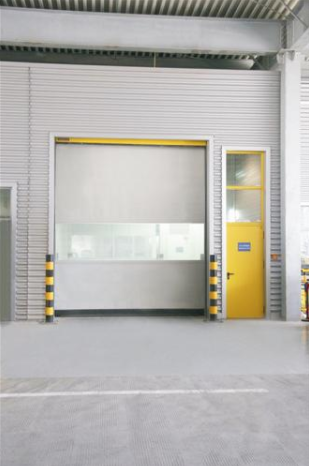

Photos
Customizations
- Full-width x 35" clear PVC, starting at approximately 52" from the floor.
- Stainless steel guide tracks.
- HFCB NEMA 3 Smart Start NXT (1-phase, 230V only).
- UPS emergency battery pack.
Warranty
- Motor/gearbox (excluding catch) and panel material: 5 years.
- All other mechanical and electrical components free from defects: 2 years.
Specifications
| Door size | Up to 14'x16' |
| Interior application | Yes |
| Exterior application | No |
| Opening speed | Up to 80"/sec |
| Closing speed | 30"/sec |
| Panel | Foam fabric |
| Guide tracks | Galvanized steel |
| Stainless steel option | Yes: guide tracks |
| Motor | Direct drive |
| Enclosure | Smart Start NXT NEMA 4X 3-phase |
| Colour options | Gray |
