Speed-Master Interior and Exterior Fabric Roll-Up Doors

High-Speed Doors with Built-In Safety

The Speed-Master door is meant for industrial applications with frequent vehicle and pedestrian traffic. These high-speed doors feature a built-in light grid up to 8′ high and a soft bottom edge that reverses once it detects obstructions to prevent damage.

Information

Energy-Efficient High-Speed Roll-Up Doors

Speed-Master’s high speeds and panel materials prevent outside air infiltration (including heat or A/C loss) even in the toughest interior or exterior applications. Its compact, self-monitoring direct drive motor has a patented built-in safety brake and is maintenance-free. The patented sectional panel design is constructed from reinforced, puncture-resistant PVC or Bulldog XT material for ultimate durability and is easily replaceable.

High-Speed Roll-Up Doors Increase Safety with Light Curtains

High-speed fabric roll-up doors are energy-efficient with fast opening speeds of up to 60″/second. Each door model has a built-in light grid up to 8′ high. If a light beam is interrupted, the door automatically reverses back into its rolled-up position. This door also features a soft bottom edge for enhanced safety and prevention of damage to goods or personnel.

Reduce Downtime with Breakaway Bottom Bar

The breakaway bottom bar is designed to detach upon impact, preventing damage to the door. It can be quickly reset, allowing operations to resume with minimal interruption and reduced downtime.

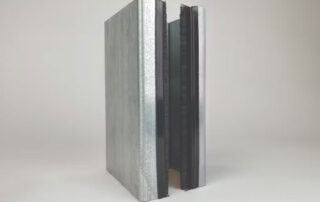

Low-Profile Guide Tracks

The ultra-compact, heavy-duty guide tracks are engineered to fit seamlessly into tight spaces and demanding environments. With an overall width of just 7-3/8” and a projection of 4-3/8”, these low-profile tracks offer maximum durability without compromising on space. Ideal for applications where clearance is limited, they provide reliable performance and long-lasting support for high-speed or high-cycle doors.

Ideal Applications

Speed-Master’s ideal applications include manufacturing and industrial markets such as warehouses, engineering plants, mass transit garages and waste management facilities.

Safety Accessories

LED Door Communication Lights

This LED light strip changes from green to red to show when the door is closing, helping avoid accidents in busy places. Mount at eye level for easy viewing.

Learn More

Motion & Presence Sensors

LZR Widescan laser sensors for pedestrian and forklift safety, and a virtual pull cord that requires forklifts to stop before the door activates, reducing accidental impacts.

Learn More

Activation Method

The most important aspect of any door project is deciding on your activation method to:

✓ Prevent the door from being hit.
✓ Prevent the door from hitting people.
✓ Extend the life of the door.
✓ Improve productivity.
✓ Decrease downtime and maintenance.
✓ Save energy.

Activation – Push Button

Push Button

Activation – Floor Loop

Induction Loop Detector

Activation – Touchless

Touchless Wave-to-Open Sensors

Activation – Pull Cord

Pull Cords (Physical or Virtual)

Activation – Motion

Radar, Motion and/or Presence Sensors

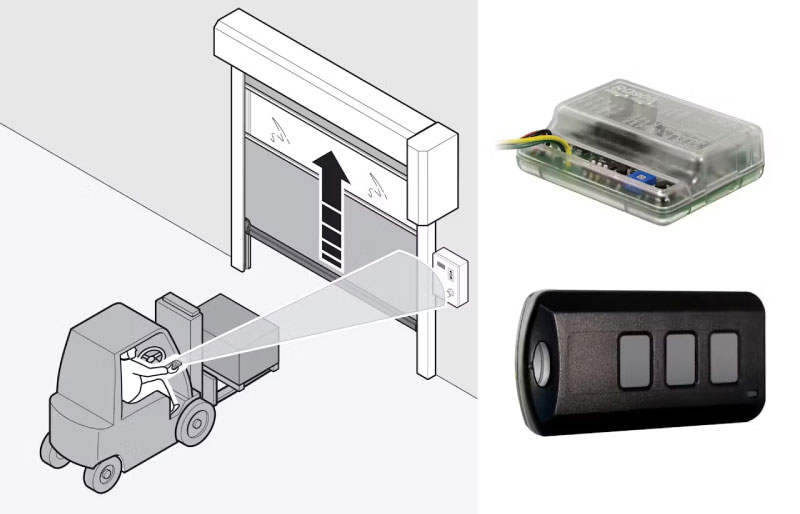

Activation – Remote

Remote Controls

Photos

Customers That Love This Product

Read customer success stories

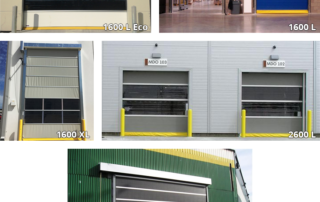

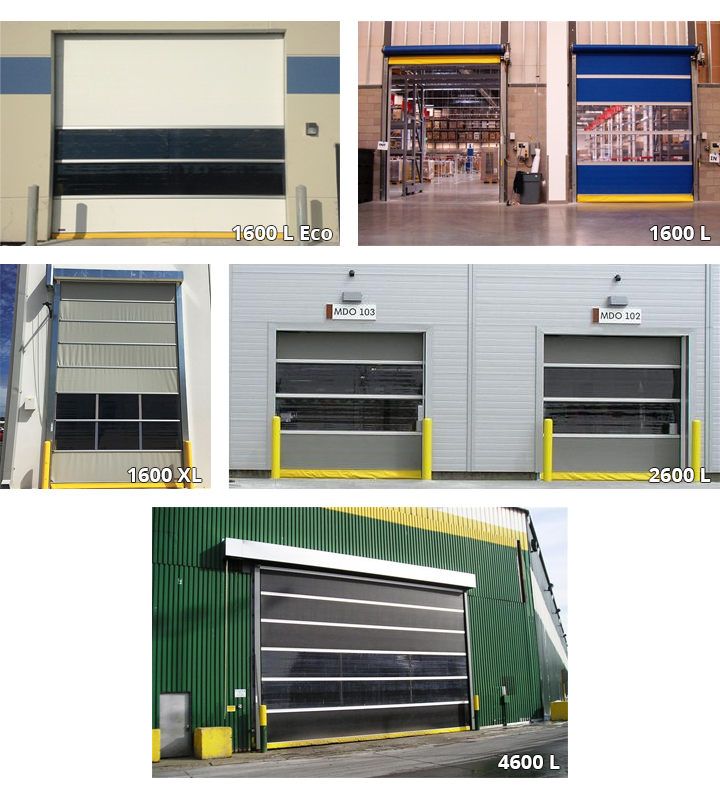

Models

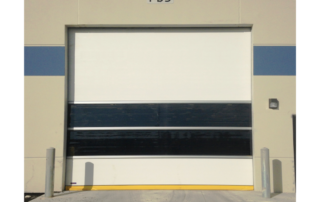

	Speed-Master 1600 L Eco The Hormann 1600 L Eco fits door sizes up to 12'x12'.

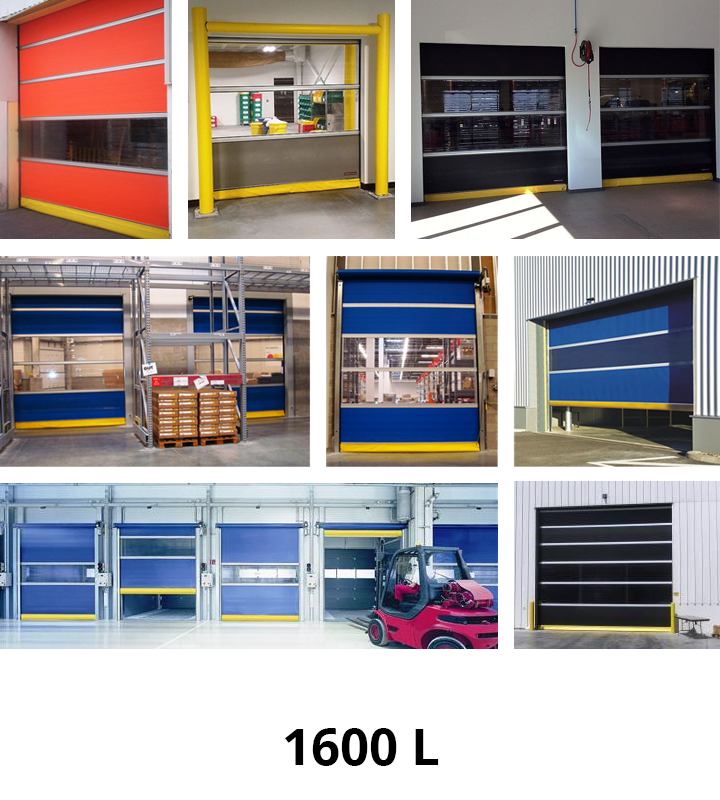

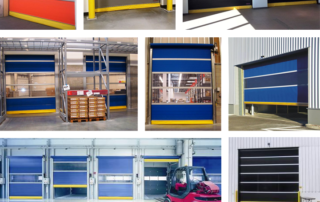

	Speed-Master 1600 L Hormann's 1600 L high-speed roll-up door fits on door sizes up to 14'x16'.

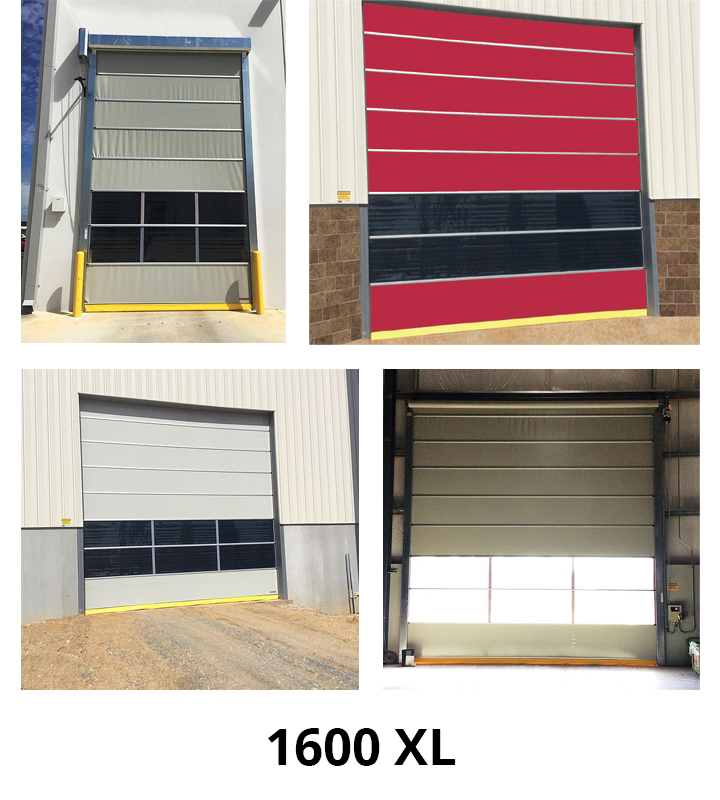

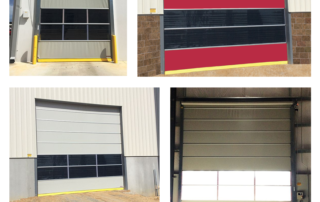

	Speed-Master 1600 XL The 1600 XL high-speed fabric roll-up door fits on door sizes between 14'x16' to 20'x20'.

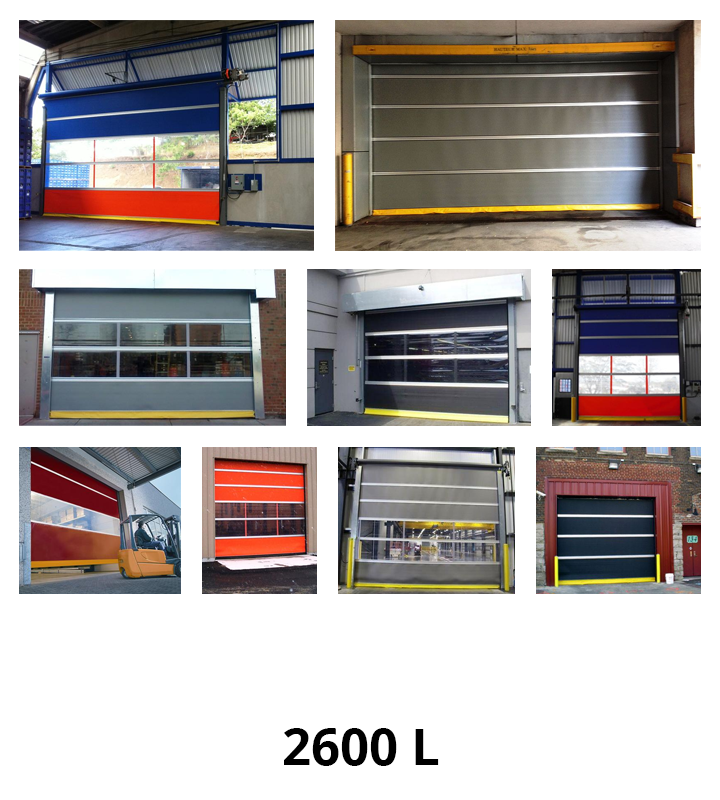

	Speed-Master 2600 L This high-speed roll-up door fits on door sizes up to 24'x24'.

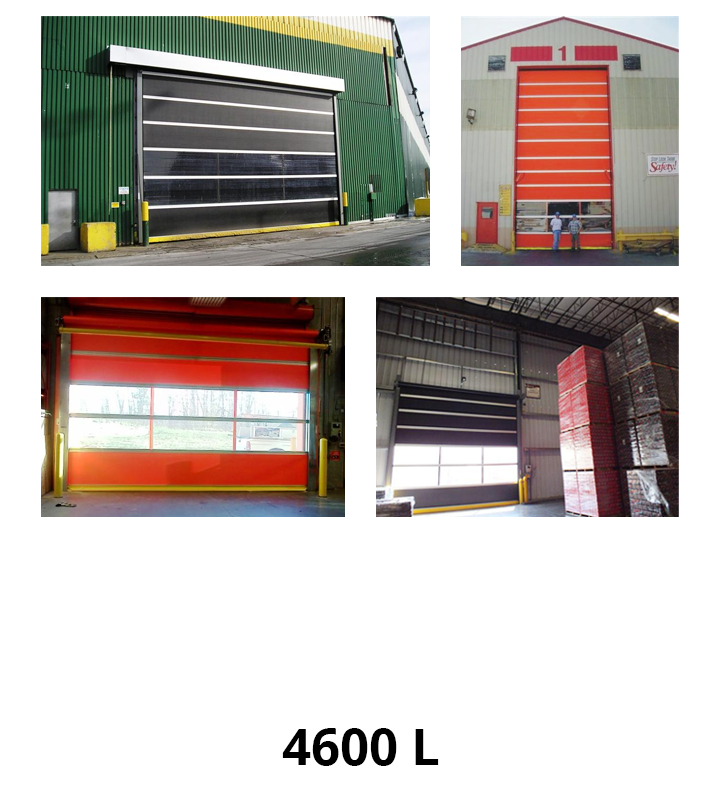

	Speed-Master 4600 L This Speed-Master model fits on door sizes up to 33'x30' or 690 sqft.

Model Comparison Chart

	1600 L Eco	1600 L	1600 XL	2600 L	4600 L
Size range	Up to 12'x12'	Up to 14'x16'	14'x16' to 20'x20'	Up to 24'x24'	Up to 33'x30' or 690 sqft.
Exterior application	Yes
Interior application	Yes
Panel	PVC	Bulldog XT material	PVC	Bulldog XT material	Bulldog XT material
Vision	Full-width area	Two full-width areas	Two full-width areas	Two full-width areas	Two full-width areas
Opening speed	Up to 60"/sec	Up to 60"/sec	Up to 36"/sec	Up to 36"/sec	Up to 24"/sec
Closing speed	30"/sec	30"/sec	30"/sec	30"/sec	24"/sec
Exterior application colours	Orange, blue, yellow, red, gray, white	Black, blue, orange gray, white	Orange, blue, yellow, red, gray, white	Black, blue, orange gray, white	Black, blue, orange gray, white
Guide tracks	Galvanized steel	Galvanized steel	Galvanized steel	Galvanized steel	Steel
Stainless steel options	No	Yes	No	No	No
Motor	Direct drive
Control box	1-phase, 60 Hz, 230 volt Smart Start NXT wiring but with a NEMA 3 rated control box	Smart Start NXT NEMA 4X 3-phase	Smart Start NXT NEMA 4X 3-phase	Smart Start NXT NEMA 4X 3-phase	Smart Start NXT NEMA 4X 3-phase

Customizations

Customized panel prints. Logos, pictures and text may be digitally printed on the door panels (images are durable, UV treated and waterproof). Maximum image size is 7’x3′.
Door panel colour. Orange, blue, black or grey.
Additional vision areas.
LZR widescan laser motion and presence sensor.
Remote keypad.
LED red/green door communication light strips.
Stainless steel guide tracks for 1600 L Eco and 1600 L.
UPS emergency battery pack for 1600 L Eco.
Windlocks for 1600 XL.

Warranty

Motor/gearbox (excluding catch) and panel material: 5 years.
All other mechanical and electrical components are free from defects: 2 years.
