1400 SEL Food-Master High Performance Food Processing Door
Jump to: Information | Safety | Activation | Photos | Customers | Customizations | Warranty | Specifications
Information

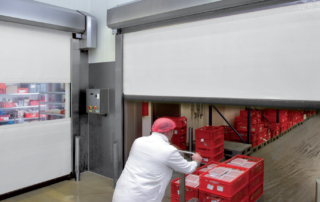

The Energy-Efficient Food Processing Door

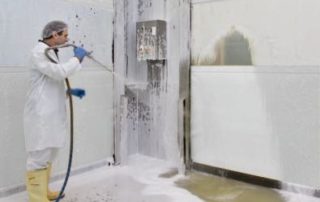

The Speed-Commander 1400 SEL Food-Master high-speed interior door is highly energy-efficient with fast opening speeds of up to 80″/second and closing speeds of up to 30″/second without compromising on safety. It incorporates a coil-free built-in light grid up to eight feet high and utilizes a soft bottom edge that automatically reverses in case of accidental impact, greatly reducing maintenance costs. The light grid remains as an effective protection device even following wash-down. This food processing door also comes with a standard, full-width vision panel with 40 oz./sq. yard white PVC fabric to provide maximum visibility for personnel in high-traffic areas.
Stainless Steel Options for Ultimate Flexibility
Food-Master’s unique design allows you to pick and choose stainless steel options that are specifically required for your application. Conveniently build a customized food-grade door without paying for unnecessary stainless steel options. The 1400 SEL Food-Master door has stainless steel options available for the roll tube/shaft, door/motor cover, guide tracks and/or all hardware.
Food-Grade Panel Materials
1400 SEL Food-Master is available with two food-grade panel materials: the standard is a 40 oz./sq. yard white nylon-reinforced, puncture-resistant PVC, perfect for basic applications. An optional 90 oz./sq. yard 100% FDA-approved white polyurethane panel material is available when optimum compliance is needed. The 40 oz./sq. yard material is available with a vision panel, which is not available in the 90 oz./sq. yard model. With either material, the panel maintains stability via spring steel stiffeners located in completely sealed panel pockets.
SoftEdge for Enhanced Safety
The SoftEdge prevents damage and cuts down on downtime. Unlike rigid door profiles that often need major repairs after a crash, SoftEdge bends and absorbs impact, making repairs quick and easy.
This smart design keeps your door running smoothly and helps maintain steady production without interruptions.
Wireless Breakaway Switch for Easy Reset
The wireless breakaway switch is hidden inside the SoftEdge bottom profile. If the bottom is pushed out of the side tracks during a crash, the switch sends a signal to stop the door right away. This smart system helps protect the door and lets it run for up to 3 years without needing maintenance, no matter how often it’s used.
Safety with Built-In Light Curtain
The Speed-Commander 1400 SEL incorporates a coil-free built-in light grid up to eight feet high and a soft bottom edge that automatically reverses in case of accidental impact, greatly reducing maintenance costs.
Durable & Replaceable Panels
The Speed-Commander 1400 SEL features a sectional panel design for quick and easy replacement. Panels slide smoothly into horizontal aluminum profiles, thanks to specially shaped edges and strong aluminum connectors.
The Food-Master offers two panel material options:
- Standard: A durable 40 oz./sq. yard white PVC with nylon reinforcement—puncture-resistant and ideal for everyday use.
- Optional: A heavy-duty 90 oz./sq. yard white polyurethane panel—100% FDA approved for applications that require top-level compliance.
Low-Profile Guide Tracks
The ultra-compact, heavy-duty guide tracks are engineered to fit seamlessly into tight spaces and demanding environments. With an overall width of just 7-3/8” and a projection of 4-3/8”, these low-profile tracks offer maximum durability without compromising on space. Ideal for applications where clearance is limited, they provide reliable performance and long-lasting support for high-speed or high-cycle doors.
Safety Accessories
Activation Method
The most important aspect of any door project is deciding on your activation method to:
✓ Prevent the door from being hit.
✓ Prevent the door from hitting people.
✓ Extend the life of the door.
✓ Improve productivity.
✓ Decrease downtime and maintenance.
✓ Save energy.
Activation – Push Button
Push Button
Activation – Floor Loop
Induction Loop Detector
Activation – Touchless
Touchless Wave-to-Open Sensors
Activation – Pull Cord
Pull Cords (Physical or Virtual)
Activation – Motion
Radar, Motion and/or Presence Sensors
Activation – Remote
Remote Controls

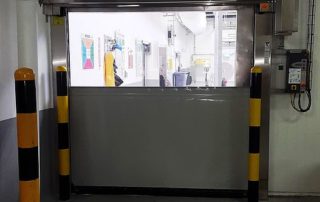

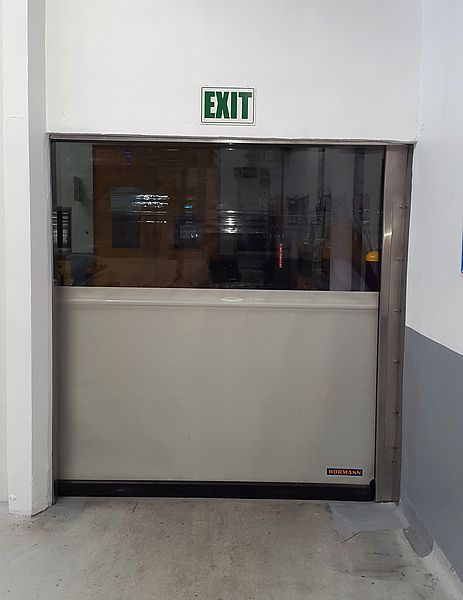

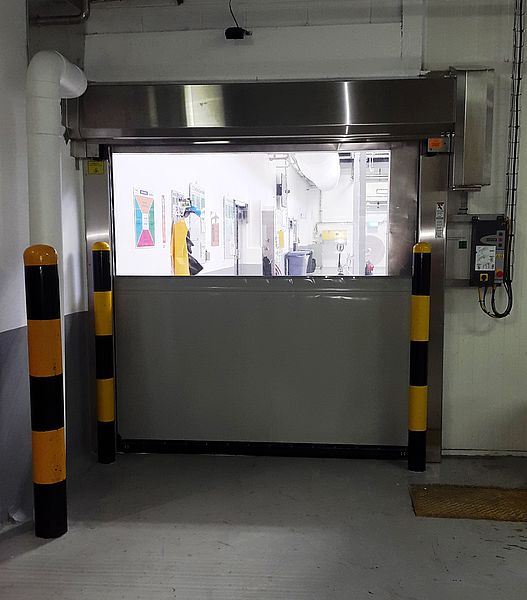

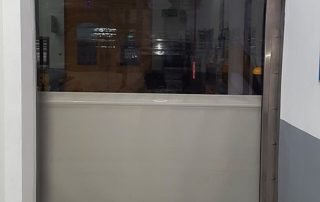

Photos
Customers That Love This Product
Food-Master High-Speed Roll-Up Doors-12 Indell
Our New Equipment Construction team supplied and installed 8 new high-speed Food-Master roll-up doors at 12 Indell in Brampton.
Customizations
- Pick and choose the stainless steel options that are specific for your application, including a stainless steel: roll tube/shaft, door/motor cover, guide track and/or all hardware.
- Door panel colours: White or blue.
- Stainless steel guide tracks.
- LZR widescan laser motion and presence sensor.
- Remote keypad.
- LED red/green door communication light strips.
- HFCB NEMA 3 Smart Start NXT (1-phase, 230V only).
- UPS emergency battery pack.
- Chain hoist in case of emergency operation.
- 90 oz./sq. yard, 100% FDA-approved white polyurethane panel material. Note: This material does have the option for a full-width vision panel.
Warranty
- Motor/gearbox (excluding catch) and panel material: 5 years.
- All other mechanical and electrical components are free from defects: 2 years.
Specifications
| Door size | Up to 14'x16' |
| Interior application | Yes |
| Exterior application | No |
| Opening speed | Up to 80"/sec |
| Closing speed | 30"/sec |
| Panel | 40 oz./sq. yard white nylon-reinforced, puncture-resistant PVC (standard) or 90 oz./sq. yard white polyurethane (optional) |
| Guide tracks | Galvanized steel |
| Stainless steel option | Yes, pick and choose from the following stainless steel options: roll tube/shaft, door/motor cover, guide tracks and/or all hardware |
| Motor | Direct drive |
| Enclosure | Smart Start NXT NEMA 4X 3-phase |
| Colour options | White |
