GMP/FDA Compliant Fabric Cleanroom Roll-Up Door (415 Iso-Roll)

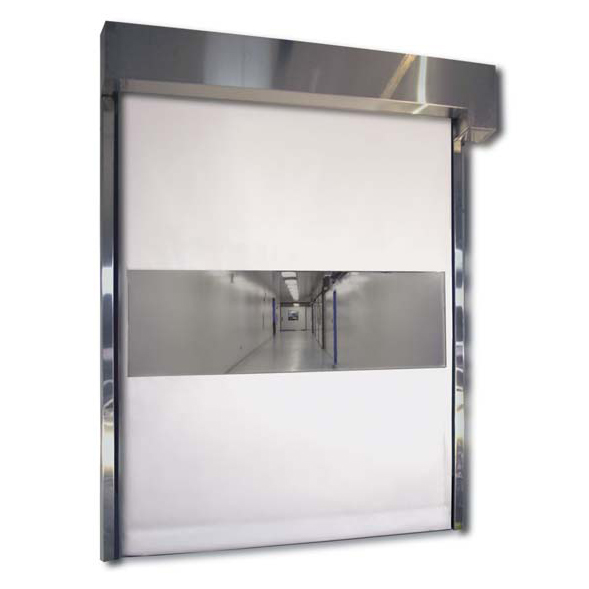

415 Iso-Roll Low Profile, High-Speed Fabric Door

Complying with CGMP and FDA requirements, the 415 Iso-Roll high-speed fabric door is ideal for food, pharmaceutical and industrial facilities.

Approved for Use in Food and Pharmaceutical Facilities: FDA compliant multi-filament polyester reinforced PVC curtain requires no wind bars or bottom bar.

Withstands Impacts: Breakaway with an automatic curtain reset feature that requires no special tools or downtime.

High-Speed: The adjustable open and close speeds, to 50”/sec., allows the user to tailor the door operation to exacting module needs.

Airtight Seal: Utilizing a “soft seal” (no bottom bar) bottom edge, the curtain molds to your floor’s contours with little or no
gap.

Quiet Durability: The standard frequency inverter allows for smooth and quiet and longer lasting soft start/soft stop door operation.

Information

Cleanroom Doors Approved for Use in Food and Pharmaceutical Facilities

FDA compliant multi-filament polyester reinforced PVC curtain requires no wind bars or bottom bar. The ultra-low-profile side frames are 304 (316L optional) stainless steel with #4 brushed finish.

Sloped top shrouds completely enclose the curtain roll and drive assembly, reducing cleaning and maintenance. Easy wipe-down of the smooth acrylic-coated curtain and small side frames make this the ultimate roll-up door for clean manufacturing environments.



Airtight with Soft Seal Bottom Edge

Utilizing a “soft seal” (no bottom bar) bottom edge, the
curtain molds to your floor’s contours with little or no
gap.

Combined with its unique, low-profile track that
continuously retains the curtain, the Iso-Roll stops air infiltration from the ground up.

Breakaway with Auto Reset

The Iso-Roll’s simple design incorporates an automatic
curtain reset feature that requires no special tools or downtime. If the curtain becomes displaced from its track, it will automatically reset on every upward cycle. The design requires NO counterweights, springs, belts, wind bars, wind knobs, coil cords or bottom bars.

pharmaceutical fabric roll up door with touchless entry

High-Speed and Low Maintenance

Our standard frequency inverter, in conjunction with absolute encoder technology and microprocessor controller, allows for smooth and quiet soft start/soft stop door operation. As a result these cleanroom door will need less maintenance and will last longer.

The adjustable open and close speeds, to 50”/sec., allows the user to tailor the door operation to exacting module needs. Using flexible inverter technology, the user is allowed to choose from a variety of line side voltages, including 115 VAC single phase.

Optional Manual Release

If power is lost, simply push through the curtain (from either side) at the clearly marked location near the side frame and walkthrough. There are no special handles to pull/push, or mechanical knowledge required.

Touchless Wave-to-Open

Pair these cleanroom doors with a touchless wave-to-open door opener to prevent cross-contamination and speed up employee access.

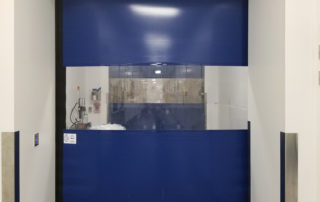

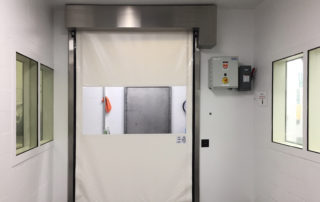

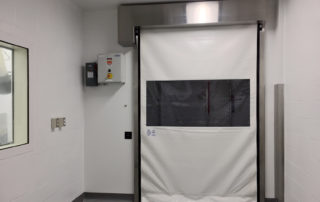

Photos

Customers That Love This Product

Read Customer Success Stories

Specifications

Door size Up to 12' x 12'
Opening speed Up to 50"/sec
Closing speed Up to 25"/sec
Motor High performance, high efficiency 1 HP electric motor
Panel Construction
  • .030 thick multi-filament PVC coated curtain material, FDA compliant.
  • White or blue color curtain standard. (Other colors available upon request.)
  • 28” high, full width, clear PVC vision panel.
  • Soft bottom edge - no bottom bar required.
Frame construction
  • Side frames constructed with 12 ga., 304 #4 stainless steel with 20 ga. stainless steel covers.
  • Side frames designed for maximum durability and easy wipe-down/wash-down with quick inspection.
  • 16 ga. sloped shrouds completely enclose the curtain roll and drive motor.

Customizations

  • Vision panels (horizontal or vertical)
  • Manual release
  • Custom designed interlocking system
  • Touchless activation devices
  • Time delay close
  • Battery back-up system (120 volt AC only)
  • Pre-announce to close kit
  • Remote mount push buttons
  • Photoeye or motion sensor activation
  • Consult factory for window options
  • Radio control activation-single or multi-channel transmitter
  • Dual Send & Receive reversing photo-eye package

Warranty

• 1 year limited.
