Rugged aluminum wheel risers

Wheel risers

Economical: Wheel risers level trailers with loading docks that are otherwise too high.

High load capacity: Standard aluminum wheel risers are capable of handling 24,000 lbs per pair.

Customizable: Sizing for wheel risers can be customized to suit any application.

Information

Rugged aluminum wheel risers are essential for efficient loading

Rugged aluminum wheel risers are the economical solution to level trailers with loading docks that are otherwise too high. Lightweight by design, these rugged aluminum wheel risers are available in standard heights of 6″, 8″, 10″ or 12″, and standard widths of 18″, 24″ or 30″, with a selection of varying deck lengths.

Each pair of rugged aluminum wheel risers have an extensive load capacity of 24,000 pounds per pair, allowing trailers to be positioned properly above a dock and essential for efficient loading applications. With multiple width, length and custom sizes available, these rugged aluminum wheel risers easily accommodate single, dual, or tandem axle trailers and can be portable or permanently positioned.

Rugged aluminum wheel risers

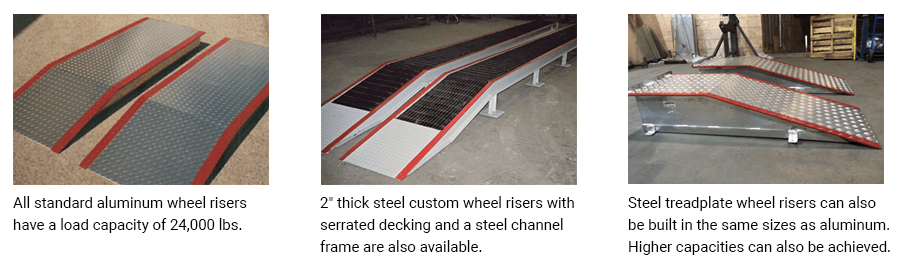

All standard aluminum wheel risers have a load capacity of 24,000 lbs.
Wheel risers

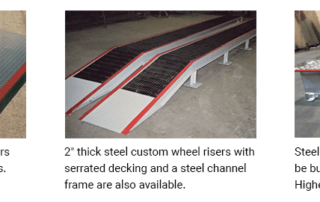

2" thick steel custom wheel risers with serrated decking and a steel channel frame are also available.
Steel wheel risers

Steel treadplate wheel risers can also be built in the same sizes as aluminum. Higher capacities can also be achieved.

Photos

Customers that love this product

Customizations

• Custom widths, heights and deck lengths.
• Wheel risers constructed 2" thick steel serrated decking and a steel channel frame (same dimensions as aluminum wheel risers with the potential for higher capacities).

Warranty

• 1 year limited.

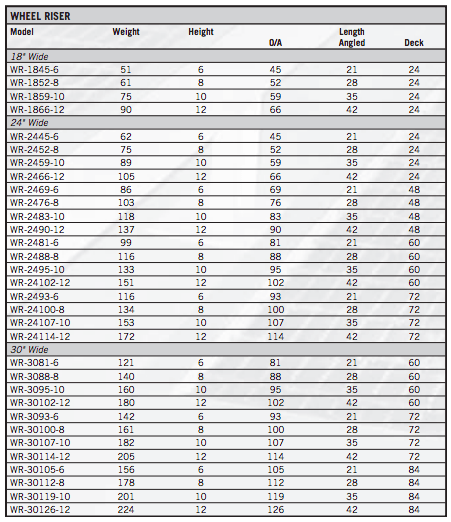

Specifications
