Retail impact door

Industrial and retail impact doors

Brochure

Contamination prevention: Deter birds, pests and all sorts of bugs from entering the facility for increased personnel and product safety.

Durability: Constructed using 14-gauge steel framing with weatherproof, durable netting material that is abrasion and rot-resistant.

Information

Separate restricted use areas

Designed for openings up to 8’x9′, the All Star 75 retail impact door is an aesthetic general purpose solid wood door ideal for separating restricted and public use areas for increased privacy and security. This retail impact door comes with an ABS standard outer finish and also has a wide selection of other outer finishes including laminate, aluminum, stainless steel or galvanized steel. In addition, All Star 75’s optional “snap-in” gasketing add-on provides superior environmental control, saving money on energy costs.

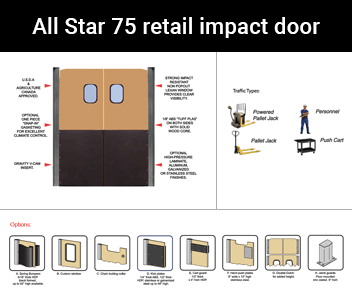

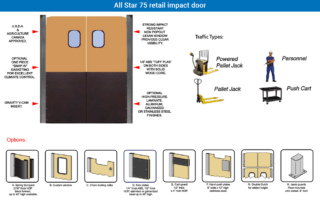

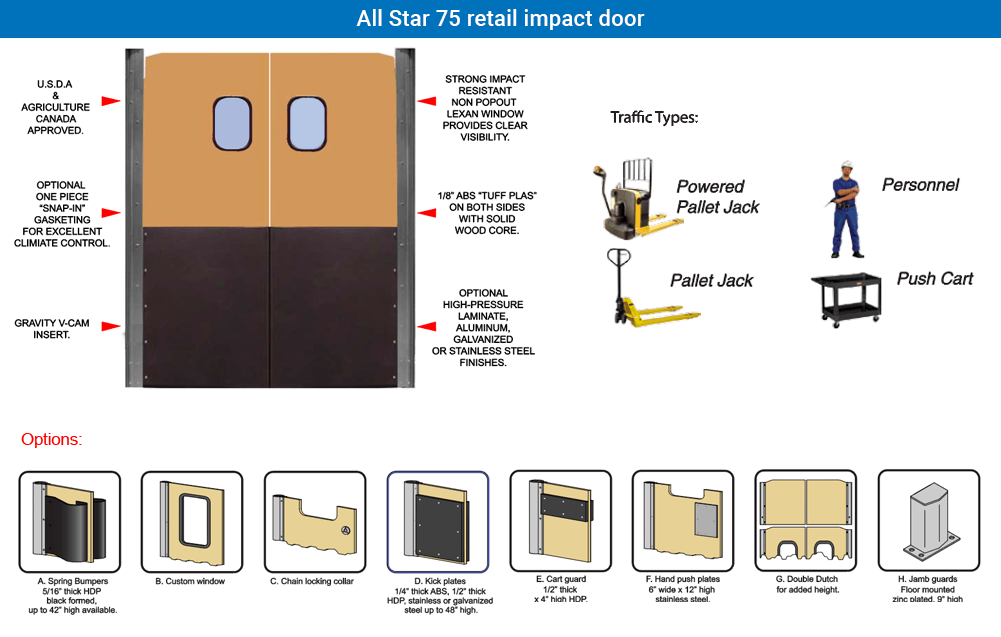

Model: All Star 75 retail impact door

All Star 75 is ideal for general purpose or retail use in: auto stores, beer stores, department stores, drug stores, flower shops, liquor stores, pet stores, restaurants, super centres, bakeries, delis, distribution centres, fish markets, hospitals, manufacturing, receiving area, retail outlets, or supermarkets.

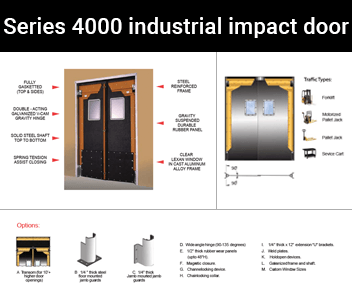

Model: Series 4000 industrial impact door

Prevent product and equipment damage

The Series 4000 industrial impact door is designed for openings up to 10’x10′, able to withstand heavy-duty traffic. Reduce maintenance costs with this industrial impact door’s rugged v-cam hardware that is engineered to be virtually maintenance-free. An adjustable spring compensates for negative pressure while the tough 1/2″ thick, “gravity suspended” rubber panels flex to absorb impact, protecting product and equipment from damage. This impact door also includes a large centre overlap to assure minimal air exchange.

Industrial applications for the Series 4000 impact door include: double-acting traffic, heavy industrial, manufacturing, mining, outdoor, or warehousing facilities.

Photos

Customers that love this product

Read customer success stories

Models

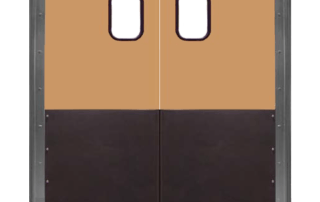

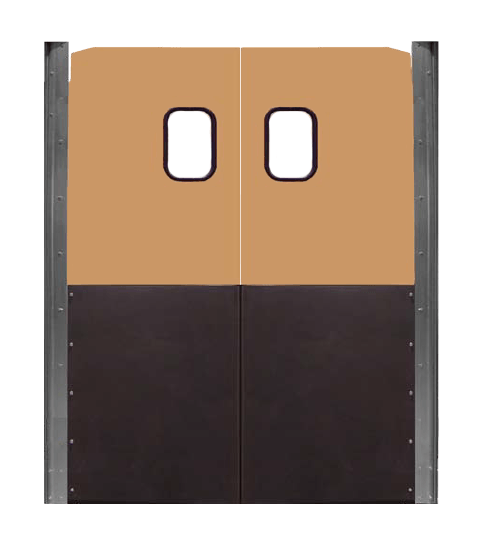

All Star 75 general purpose impact door

The All Star 75 retail impact door is an aesthetic general purpose solid wood door ideal for separating restricted and public use areas for increased privacy and security.

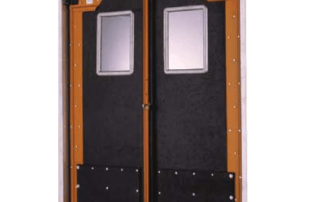

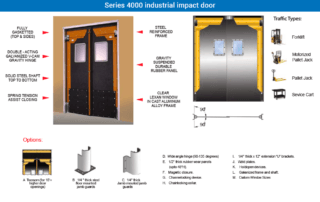

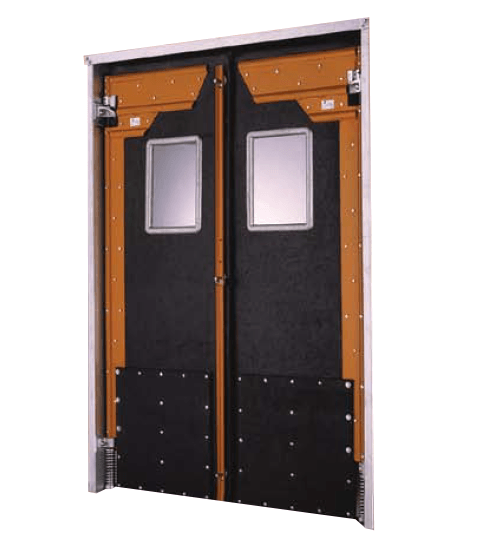

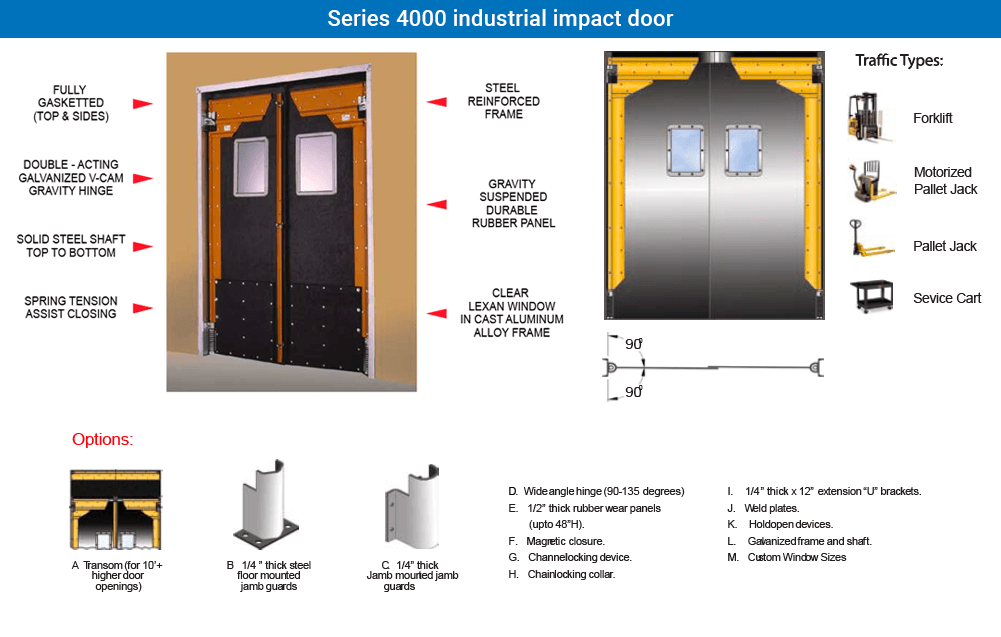

Series 4000 industrial impact door

Designed to withstand abusive, heavy-duty traffic, the Series 4000 industrial impact door is virtually maintenance-free with its suspended rubber panels that flex to absorb impact, protecting product and equipment from damage.

Model comparison chart

  All Star 75 (retail) Series 4000 (industrial)
Max. door opening 8'x9' 10'x10'
Ideal applications For general purpose or retail use in: auto stores, beer stores, department stores, drug stores, flower shops, liquor stores, pet stores, restaurants, super centres, bakeries, delis, distribution centres, fish markets, hospitals, manufacturing, receiving area, retail outlets, or supermarkets For industrial use in: double-acting traffic, heavy industrial, manufacturing, mining, outdoor, or warehousing facilities
Suitable traffic types Personnel, powered or regular pallet jacks, push carts Forklifts, motorized or regular pallet jacks, service carts
Door construction Structural grade plywood core Black abraision-resistant 1/2" thick rubber "gravity suspended" between two 11-guage roll formed steel frames reinforced with corner gussets
Panel construction 1/4" thick extruded aluminum frame with a satin anodized finish. Each panel has a non-pop out Lexan window, 9"x16" set in black molding 11.5"x15.5" Hof 1/8" thick clear safety acrylic in cast aluminum alloy frame

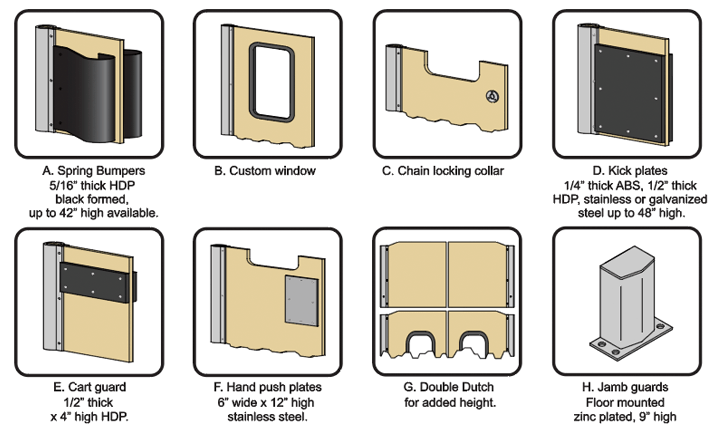

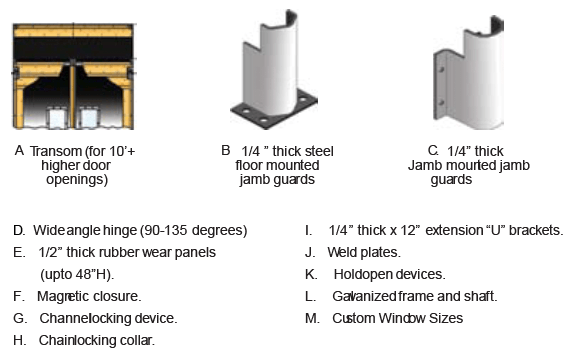

Customizations



Warranty

• 1 year limited.
