Rebounding bollard

Rebounding Bollard

Brochure

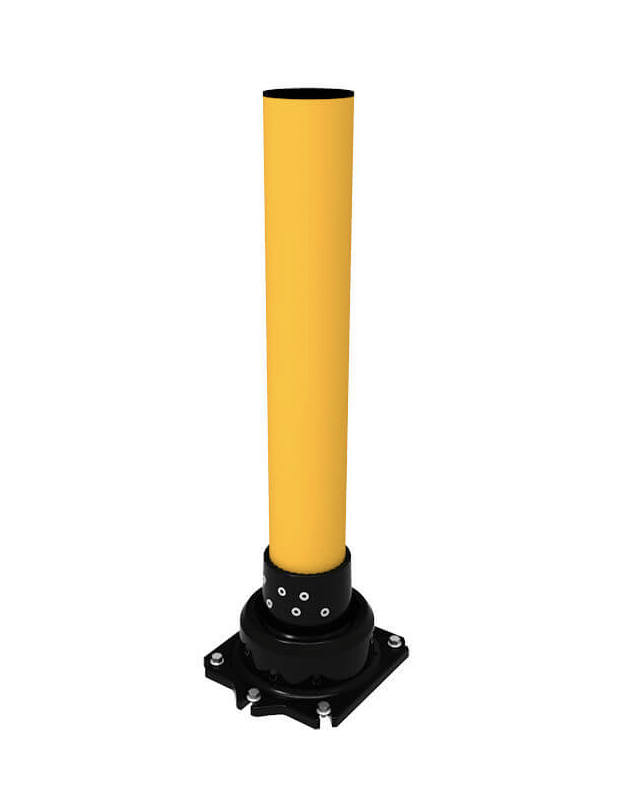

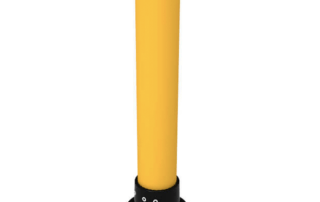

A Rebounding Bollard Does Not Need to Be Replaced After Impact

Constructed from steel and revolutionary in design with its rebounding elastomer base, these bollards successfully absorb impact and reset to their original position without the need for replacement after a collision.

  • Reduce maintenance costs: The rebounding bollard automatically springs back into its original position after impact and does not require replacement.
  • Quick installation: The rebounding bollard eliminates the need for replacing concrete after impact and also eliminates the extensive time required to set concrete.

Information

The Impactable, Energy-Absorbing Slow-Stop Bollard

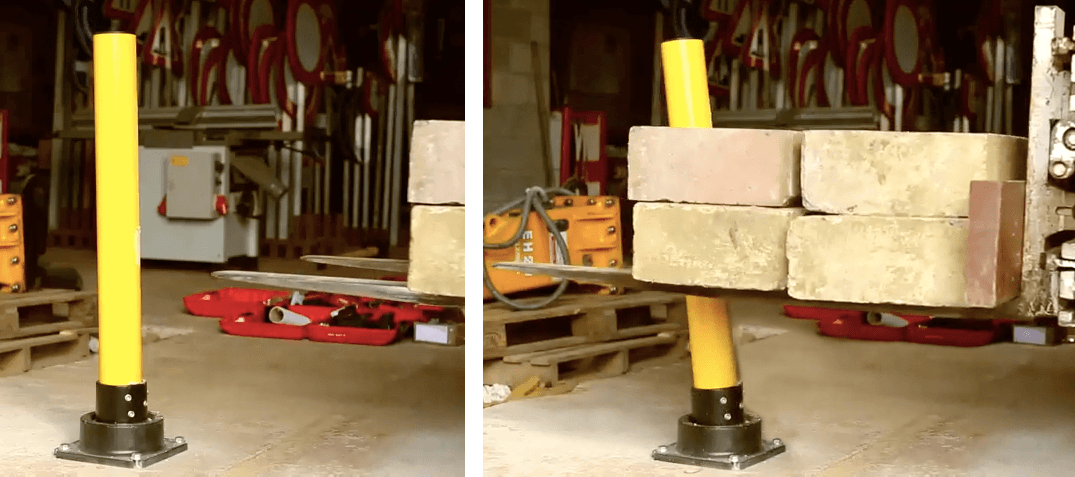

The rebounding bollard is an ingenious impact-absorbing system that protects both sides of the impact. This slow-stop bollard protects and minimizes damage to forklifts—its strong steel construction and patented elastomer base is designed to flex and pop back up after impact.

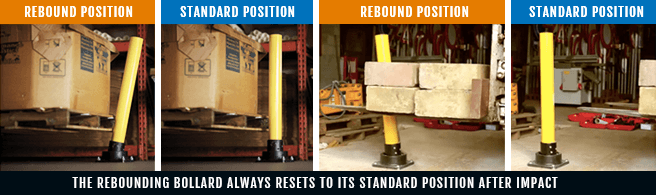

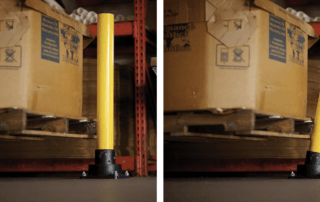

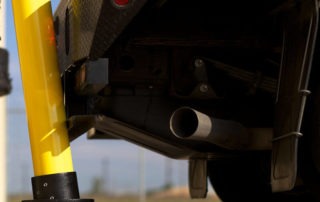

Rebounding bollard always resets to its standard position even after impact

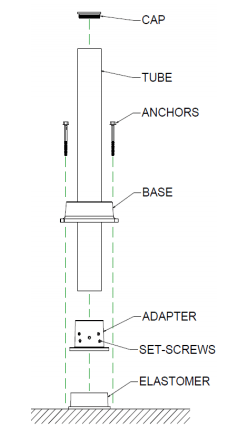

Rebounding bollard diagram
Elastomer bottom flexes to absorb maximum impact.
No concrete damage

Eliminate Costly Damage to Concrete After Impact

The rebounding bollard eliminates damage to concrete caused impacting stationary bollards. The rebounding bollard successfully withstands impact, transferring energy to its elastomer base that flexes and returns to its original position.

Comparing a stationary bollard to the rebounding bollard

Rebounding in Action

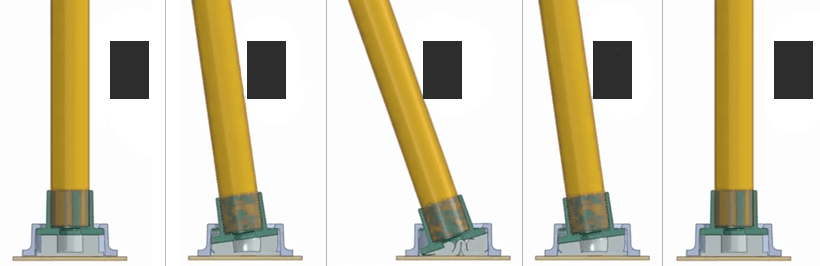

The diagram illustrates the “bouncing” motion of the rebounding bollard with its elastomer base.

Rebounding bollard's rebounding action

Sizing and Ideal Applications

The rebounding bollard is available in 4″ and 6″ diameters with different ideal applications.

4"
4" diameter bollard:
  • Meant for medium-duty usage.
  • Equipment/storage rack guarding.
  • Drive-thru lanes.
  • Pedestrian safety.
  • Access denial.
  • Fuel pump and utility protection.
  • Post-tensioned concrete.
  • Not suited for K-rated security use.
6"
6" diameter bollard:
  • Meant for heavy-duty usage.
  • Equipment/storage rack guarding.
  • Loading docks/warehouse entrance ramps.
  • Pedestrian safety.
  • Access denial.
  • Utility protection.
  • Post-tensioned concrete.
  • Not suited for K-rated security use.

Photos

Customers That Love This Product

Read Customer Success Stories

Customizations

  • Molded bumpers available.
  • Installation kits.
  • Steel face: yellow truck guide face.
  • Solid steel risers and build-outs (extensions from 2"-12", risers from 2"-8").

Warranty

  • 1 year limited.

Specifications

Model # 60-5201
Diameter 4"
Height 42"
Set screws 5 M16 x 2; 8mm Hex
Recommended usage Medium-duty
Cap Black plastic
Energy absorption 2,667 joules / 1,967 ft-lb
Temperature rating -40°C / -40°F
Pipe coating Galvanized and powder
Cast iron coating Environmentally friendly water-based KTL coating plus powder coat C5I rated
Model # 60-5203
Diameter 6.63"
Height 42"
Set screws 8 M16 x 2; 8mm Hex
Recommended usage Heavy-duty
Cap Black plastic
Energy absorption 12,934 joules / 9,536 ft-lb
Temperature rating -40°C / -40°F
Pipe coating Galvanized and powder
Cast iron coating Environmentally friendly water-based KTL coating plus powder coat C5I rated
