Air dock leveler

Air-powered dock levelers

Brochure
Nordock guarantees these products will outperform all others on the market.

Built for strength: Air dock levelers are manufactured in Canada and tested to withstand impact and handle the heaviest loads, with a 33% deck-to-beam weld ratio and up to 15-20% heavier than traditional dock levelers.

Center deck support that lasts: High-quality, consistent placement of welds and proper center deck support allows for even weight distribution throughout the hydraulic dock leveler.

No pinch points: The open lug design on the front hinge allows debris to pass straight through the dock, eliminating pinch points that cause serious structural damage to other dock levelers.

Premium safety: Open and close the air dock leveler with a push of a button, unlike mechanical dock levelers which require workers to manually open and close the dock lip, causing workplace injuries to the neck, shoulders and back.

Information

Air bag protected over 99% of the time

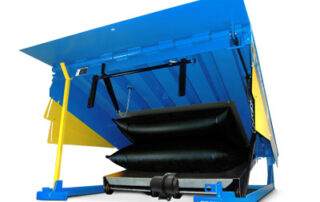

A fully-protected single chamber air bag activation system shields the air bag from outside contamination over 99% of the time. In addition, Nordock’s single chamber balanced design reduces material, redundant air chambers and unwanted seams to eliminate unnecessary friction.

Unique open lug design eliminates pinch points

Nordock products are guaranteed to outperform all others on the market, and these dock levelers are no exception. Their unique open lug design on the front lip eliminates pinch points by allowing debris to pass straight through the dock leveler. Pinch points are often the cause of serious structural damage to traditional dock levelers, often leading to frequent maintenance and high repair costs. The open lug design is standard on all models except the Constructor series.

Unique open lug design by Nordock eliminates pinch points
Comparing a traditional dock lip with the Nordock dock lip that is guaranteed to outperform

Constructed to support the heaviest loads in demanding applications

The majority of dock levelers that are available on the market use inconsistent spot welds on one side of the hinge that provides significantly insufficient support to the center deck. Nordock’s air-powered dock leveler lips use consistent 4″ welds that encompass both sides of every hinge, delivering superior center deck support that is able to handle the heaviest loads.

Key features of every Nordock air dock leveler

Each air-powered dock leveler features:
• A continuous rear hinge assembly for long-term strength and durability.
• Integral lip and deck maintenance support.
• An open frame design for easy pit cleaning.
• Full operating range telescoping side guards.
• Easy operation with single push-button control.
• A self-contained 120 Volt fan motor with a fully-protected single chamber balanced air bag activation system.
• Security night locks.

Photos

Customers that love these products

Read customer success stories

Models

Super-Duty

The Super-Duty air-powered dock leveler has a weight capacity of up to 60,000 lbs.

Industrial

This air dock leveler is capable of handling between 25,000-50,000 lbs in weight.

Barrier

The Barrier air-powered dock leveler models have a load capacity of 30,000-60,000 lbs.

Constructor

The Constructor series of air-powered dock levelers are built to withstand 25,000-45,000 lbs in weight.

Model comparison chart

Super-Duty Industrial Barrier Constructor
Standard size 6'x6' to 7'x10' 6'x6' to 7'x10' 6'x6' to 7'x10' 6'x6' to 7'x8'
Load capacity Up to 60,000 lbs 25,000-50,000 lbs 30,000-60,000 lbs 25,000-45,000 lbs
Standard lip
16"

Customizations

Truck-Lock vehicle restraint systems.
Fall-Stop safety barrier gates.
• Emergency stop and lip extend control.
• Extended 18" and 20" long lip available.
• Automatic return to dock level.
• Brush weather seals.
• Steel spring and steel face dock bumpers.
Dock lights.

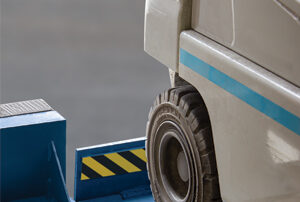

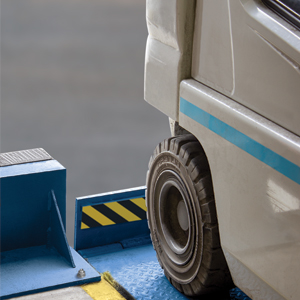

• Safety barrier lip available for Super-Duty and Industrial models.

Warranty

Lip lug
Front hinge:
20 years*

Full-width rear hinge
Full-width
rear hinge:

20 years*
Structural
Structural:
10 years*

Air-powered dock leveler air bag
Lifting mechanism:
5 years*

*Warranty applicable to all models except Constructor.

Constructor: 1 year limited.
