Defender Dock Gate
Unmatched protection for loading dock areas, preventing costly accidents with barriers strong enough to stop a 13,500 lb. forklift travelling at 6.5 mph. These OSHA-compliant safety dock gates feature easy operation, zero maintenance.
✓ Increased safety for workers: Prevent forklift accidents by blocking off the loading dock area when the doors are open with a safety strap, safety barrier or safety gate.
✓ Versatile: Safety barriers, safety gates and safety straps are applicable for a wide variety of applications including protecting pallet drop areas in doorways.
Information
Dock Gate Stops Heavy and Fast Forklifts

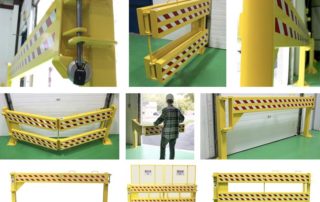

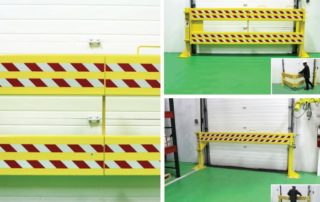

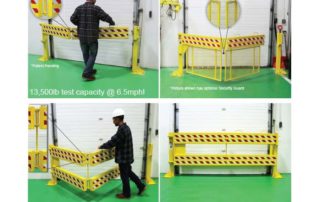

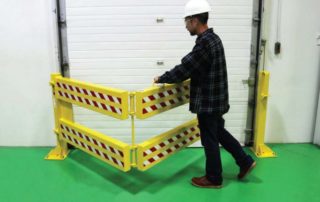

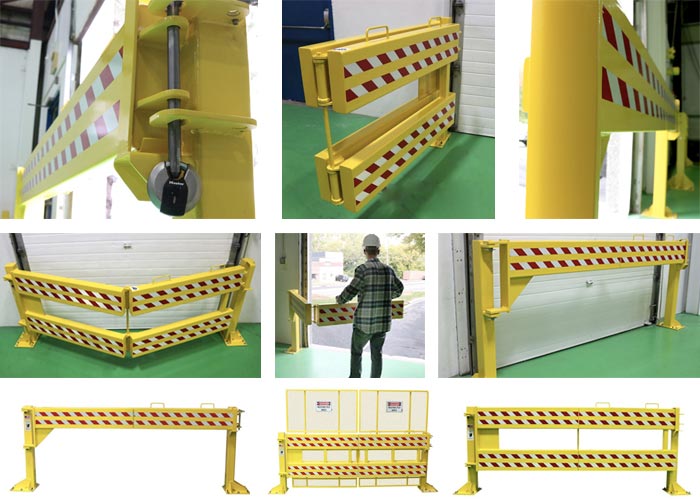

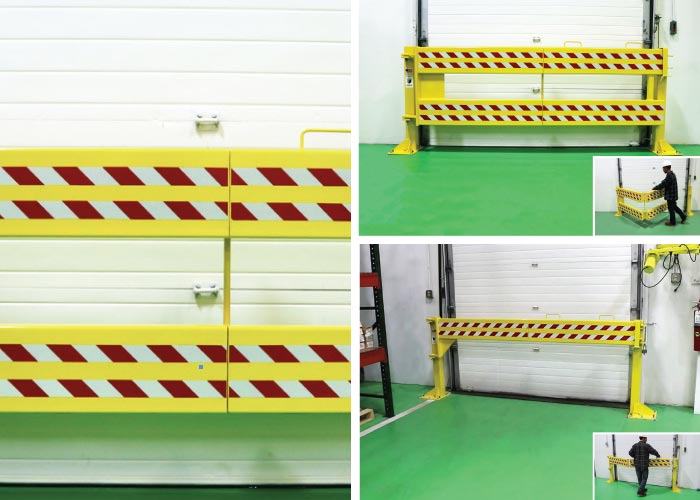

The Defender Dock Gate’s compact size makes the barrier easy to install (even on irregular floors using built-in levelling screws) and easy to operate for all personnel. Featuring a patent-pending heavy-duty steel hinge, the Dock Gate effortlessly folds in half, allowing for full access to the doorway when not in use.
Available in standard sizes ranging from 6′ to 12′, XL sizes from 14′ to 16′, and incorporating high-visibility 3M reflective tape, the Dock Gate is an efficient way to increase safety around the loading dock and other areas of any facility.

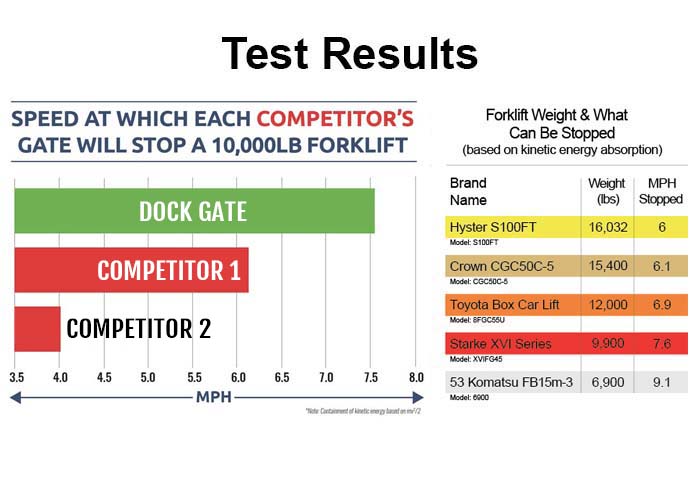

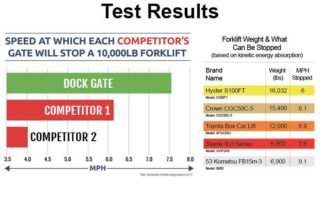

Click on the image below to see how the Dock Gate outlasted competitor models against a 10,000-pound forklift.
Securing Ledges of Pallet Drop Areas

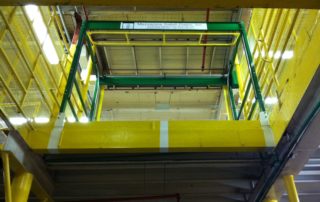

The Roly mezzanine safety gate is one of the most versatile solutions for securing ledges of pallet drop areas on mezzanines and rack picking modules. Featuring dual counterbalanced gates with a heavy-duty chain and sprocket drive system, Roly safety gates secure guardrail and doorway openings on elevated platforms. Ideal for use in many applications, Roly is the optimal solution for securing pallet drop areas in a doorway, as gates close flush with the ledge and can operate independently of overhead doors while providing fall protection.
Retractable Safety Barrier

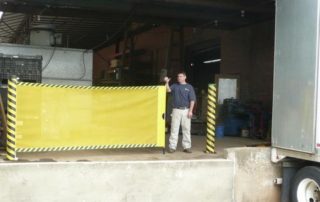

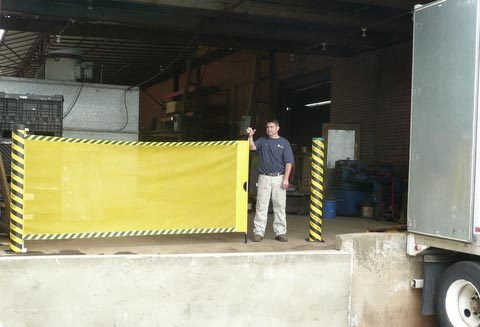

The Retractable Safety Barrier is meant for loading docks. Utilizing an air-thru mesh, the Retractable Safety Barrier allows for air and light infiltration while its yellow colour provides more visibility than a dock safety chain. The Retractable Safety barrier is easy to extend and retract (retracting into a 6″ round PVC housing with a 10″ square steel foot/shin plate).

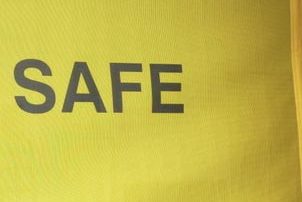

Although custom longer spans are available up to 13′, the Retractable Safety Barrier comes in a standard length of 10′, is 48″ high plus an l8″ sweep. Customization options for the Retractable Safety Barrier include seven different receiving hook styles length, colour and wording/logo printed on the centre of the ribbon. Minimum installation involves lag bolts.
Safety Straps for Cross Docks and Doorways

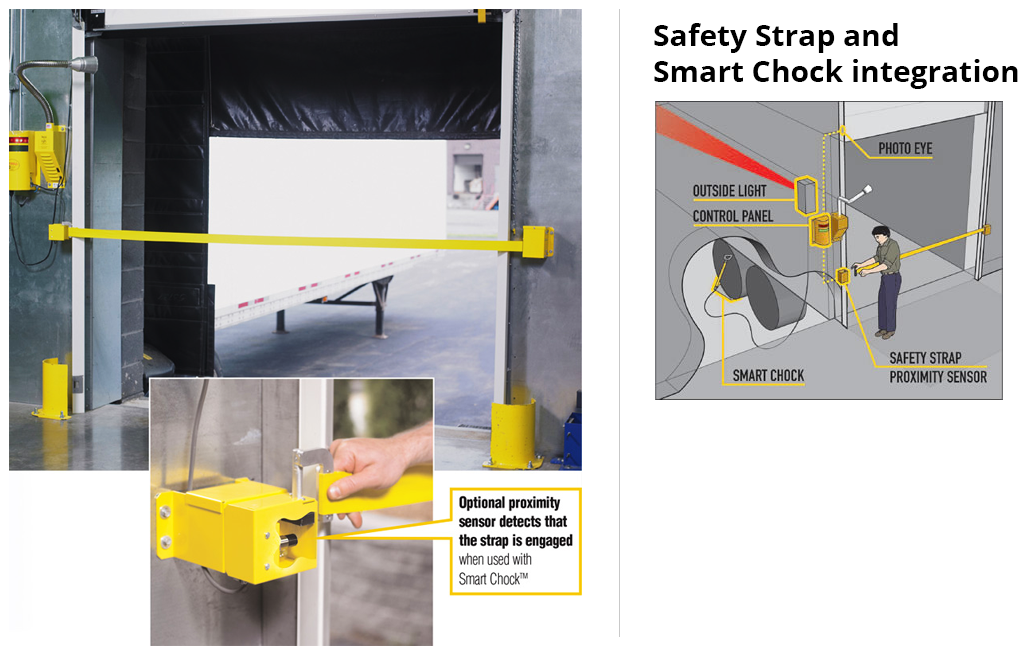

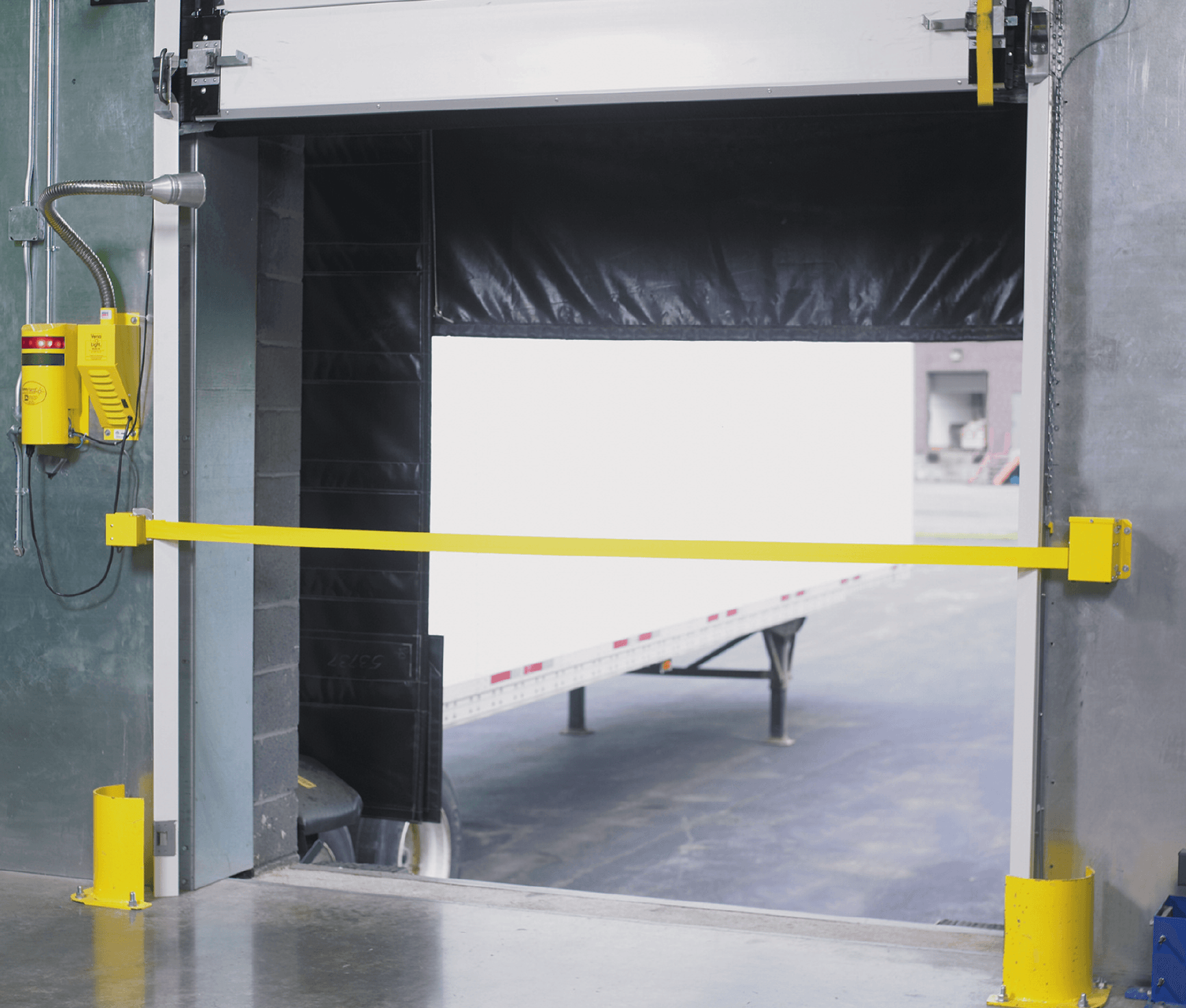

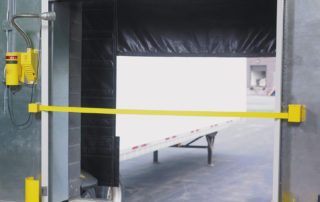

The Safety Strap is a high visibility dock barrier specifically designed for cross docks and facilities that leave their doors open. Its superior strength exceeds OSHA standards and helps prevent dock workers from falling off a loading dock. The Safety Strap’s retraction function keeps the doorway free of any obstructions when not in use. For optimal use, pair the Safety Strap with the optional proximity sensor that can be integrated with Smart Chock.
Photos
Models
 | Roly Mezzanine Safety GateThe Roly Mezzanine Safety Gate is the most versatile system for securing pallet drop areas in doorways and is available in a variety of custom sizes to maximize the space in your facility. The dual gate system works with the design of your facility to prevent moving parts that may obstruct nearby employees or equipment. |
 | Defender Dock GateThe Defender Dock Gate provides superior personnel protection against accidental impact from forklifts. |
 | Retractable Safety BarrierThe Retractable Safety Barrier utilizes an mesh which allows for air and light infiltration while its yellow colour provides more visibility than a dock safety chain. |
 | Safety StrapWhen paired with an optional proximity sensor, Safety Strap can be integrated with Smart Chock. The Safety Strap replaces the function of the dock door opening and closing when the facility operates with the loading dock doors open. |
Videos
Defender Dock Gate 20 - OverviewThe Defender Dock Gate 20 a heavy-duty double panel design for added safety. The DG20 is ideal for use at loading docks, pits or vats. Its lower bottom rung meets the OSHA 21-inch mid-rail requirement and the DG20 meets OSHA standards for fall protection. | Defender Dock Gate 20 - Collision TestingThe Defender Dock Gate 20 can stop a 13,500-pound forklift traveling at 6.5 mph. |
Defender Dock Gate 20 - OperationThe Defender Dock Gate 20 is easy and effortless to use. | Defender Dock Gate 10 - OverviewThe Defender Dock Gate 10 has a single safety rail that stands 42-inches high, heavy-duty bollards and easy-glide hinges for effortless opening/closing. |
Defender Dock Gate 10 - Collision TestingThe Defender Dock Gate 10 can stop a 13,500-pound forklift traveling at 6.5 mph. | Defender Dock Gate XLThe Defender Dock Gate XL is available in larger sizes up to 16-feet wide and has double rails. Bollards and trusses support the added weight of the elongated design, and a third top handle is included to ensure ease of operation. |
Roly Mezzanine Safety GateThe Roly mezzanine safety gate uses dual counterbalanced gates to maintain a safe environment at all times. Designed to secure guardrail openings on elevated platforms and mezzanines, Roly is ideal for protecting pallet drop areas in doorways. |
Smart ReinventedSee a demonstration of the safety strap when it's put to use at the loading dock. |
Customizations
- Security guard.

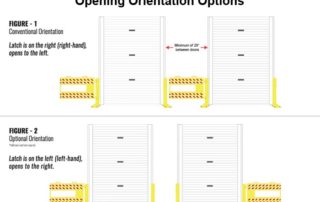

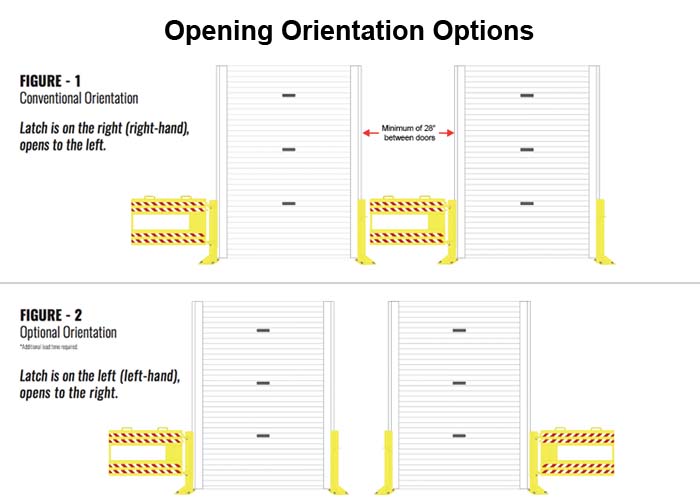

- Orientation where latch is on the left (left-hand), and opens to the right (standard orientation with latch on the right).

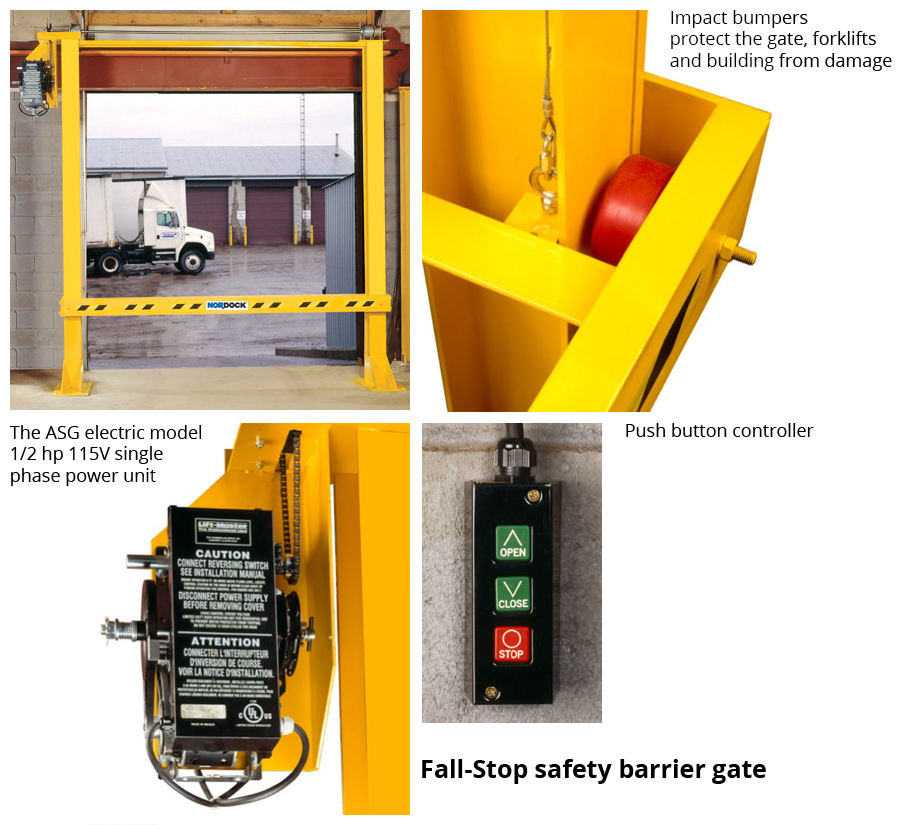

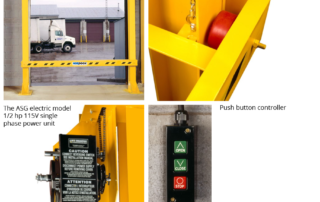

- Manual and power operation units available.
- Sizes include single, dual palette or customized larger widths.
- A variety of activation options are available including push-button stations and frequency remotes.
- Extended lengths up to 13'.
- Receiving hook styles.

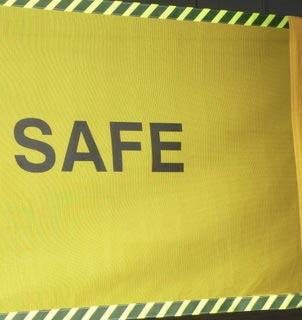

- Wording or logo on centre of ribbon.
- Can be combined with various dock communication systems from DL Manufacturing.
- Proximity sensor to detect when the strap is engaged when used with Smart Chock.
Specifications
- Standard models available in the following sizes: 6', 8', 9', 10', and 12'.
- XL models available in 14', 15' and 16'.
- Made from all steel construction, standing 42" tall.
- Heavy-duty steel plate hinges contain 1" pivot pins with oilite bronze self-oiling bushings.
| Model | Drop area | Clearance height | Overall unit |
| Single wide | 60"x60" | 82" | 64"x66"x96" |
| Double wide | 100"x60" | 82" | 104"x66"x96" |
- Standard length is 10'.
- Standard height is 48" high plus an 18" sweep.
Warranty
• 1 year limited.
