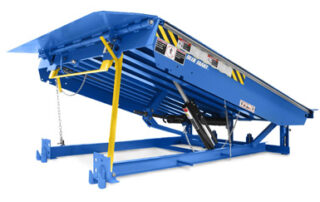

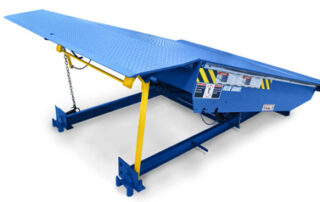

Mechanical Dock Levelers

Durable Mechanical Dock Levelers

Blue Giant’s high-performance mechanical dock levelers have an industry-wide reputation for quality and performance. With innovative features such as J-beam deck support and a highly efficient ratchet hold-down system

Easy operation: Deck deploys in a smooth, controlled fashion with a pull of the robust pull chain. Optional, easy-pull system to further reduce pull force by up to 33%.

Less walk down force needed: Engineered with a focus on usability, the Blue Giant mechanical dock leveler is simple to activate and requires less walk down force.

Cadmium-plated hold-down system: Maintains constant contact between the dock lip and the trailer bed, ensuring compatibility with air-ride trailers during loading and unloading.

Information

Available in 30,000, 35,000, 45,000 and 60,000 Load Capacities

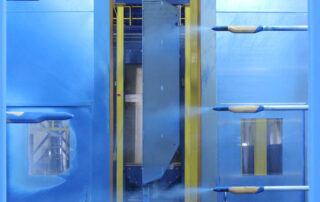

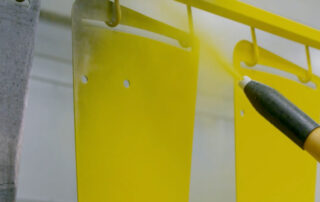

Rust Proof Powder Coat

Rust-Resistant Powder Coat

The only hydraulic dock leveler in North America to feature a powder coat finish as a standard. This Blue Giant’s powder coat finish provides a long-lasting and rust-resistant finish and colour. It is available in blue, black, grey and yellow.

Robotic Welding

Consistent Quality and Strength

The Blue Giant’s state-of-the-art robotic welding ensures structural integrity and uniform quality. Get peace of mind knowing that every weld has the same quality and care put into it.

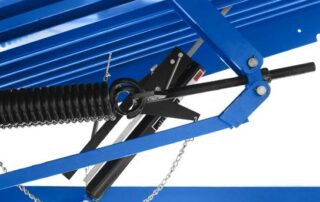

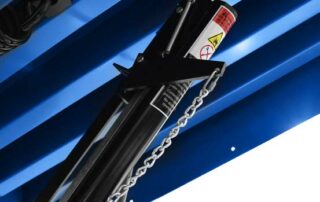

Blue Giant Mechanical Dock Leveler Hold Down System

Powerful Hold-Down System

The ratchet hold-down system offers a secure hold throughout the dock operating range.

Automatic float compensation and a pressure relief system prevent tension overload. This allows the dock to dynamically adjust to changes in trailer bed height.

Cadmium-plated ratchet is corrosion-resistant, supporting system longevity. Features eight heavy-duty Cadmium-plated teeth that are wider and deeper than the competition, resulting in a superior grip.

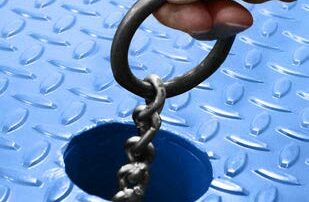

Blue Giant Mechanical Dock Leveler Pull Chain

Easy Operation

Engineered with a focus on usability, the Blue Giant mechanical dock leveler is simple to activate and requires less walk down force. In addition, the robust welded pull chain ring drastically decreases the likelihood of link distortion.

Furthermore, the crossbow lifting mechanism design requires no initial adjustment.

Add the optional easy-pull system to further reduce the pull force by up to 33%.

Blue Giant Mechanical Dock Leveler Hold Down System

Strong Enough for 3 or 4 Wheel Forklifts

8-10 enhanced J-beam channels are welded to the underside of the deck at dynamic impact points to prevent distortion and extend the lifetime of the dock leveler.

The 7′ dock features just 6″ (152mm) of space between beams at the center, making the dock suitable for 4 or 3 wheel forklifts as standard.

The notched headboard and base frame provide increased stability for service equipment, such as the dock strut and service stand.

Dock Leveler Deck Flex

Deck Flex Advantage

Ideal for normal loading conditions, the fixed rear hinge design allows the deck to flex up to 4″  when under load to ensure full-width contact between the lip and the truck bed.

The deck remains flush with the floor to eliminate pinch points and cross-traffic obstruction.

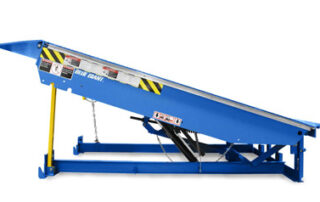

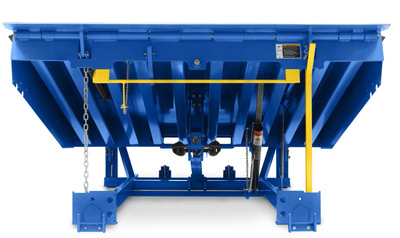

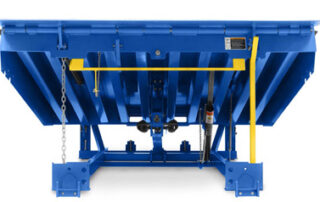

Blue Giant Mechanical Dock Leveler

Safety is Key

If a truck leaves the dock unexpectedly or slides free from the lip plate, mechanical fall-safe legs (the yellow legs at the front) prevent platform free-fall, minimizing the risk of worker injury and equipment damage.

The two stage mechanical fall-safe legs eliminate front curb angle damage, preventing costly concrete repairs.

Photos

Customers That Love These Products

Read customer success stories

Model Comparison Chart

Workhorse (W) Heavy (H) Super (S)
Load Class (Acutal Input Load) 12,500 lbs 19,000 lbs 26,000 lbs
Load Capacity 30,000-35,000 lbs 35,000-45,000 lbs 45,000-60,000 lbs

Customizations

  • Lip length 16" (406 mm) standard 18" (457 mm) or 20" (508 mm)
  • No-Shim™ dock frame
  • Energy Seal Plus™
  • Side and Rear Weather Seal
  • EasyPull™ to further reduce pull force byup to 33%.
  • Full Range Toe Guards

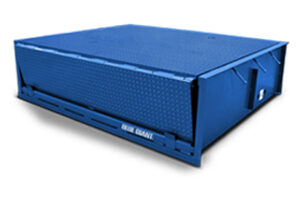

  • Closed Pit Dock Frame
  • Grease Fittings on Lip Tube

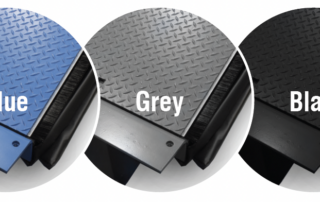

  • Colour Options: Blue, grey or black
  • Trailter restraint systems or wheel chocks.
  • Fall-Stop safety barrier gates.
  • Brush weather seals.
  • Steel face dock bumpers.
  • Dock lights.

Warranty

0 Year
Structural (Deck, Frames, Support Beams, Lip and Hinge)
0 Year
Main Lift Springs
